Description

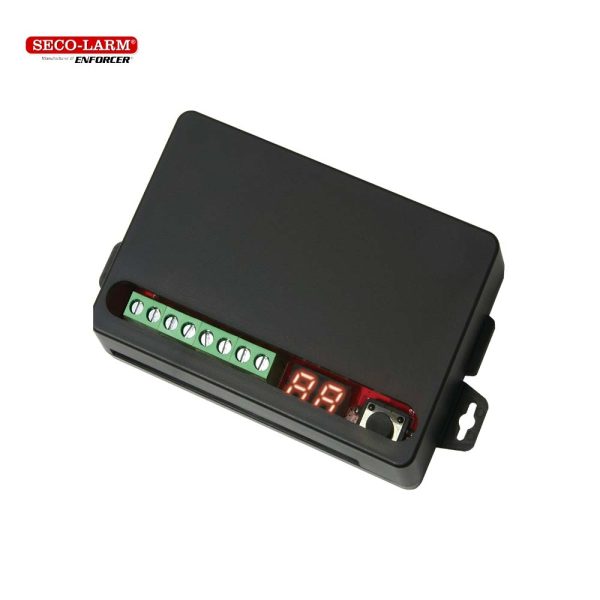

SECO-LARM SK-910RD2 – 2 Channel RF Receiver Compatible with All Enforcer SK-Series and Dual Frequency Support

ENFORCER 2-Channel RF Receiver offers multiple independently controlled output modes to remotely control a variety of devices including garage doors, lights, motorized gates, lifts, and more. Now with dual-frequency support, it offers increased flexibility and compatibility with all ENFORCER 315 or 433.92MHz transmitters, both fixed and code-hopping CODEBUMP variants.

Features:

• Simultaneously receive 315 and 433.92MHz signals with optional Extended Range Antenna

• Range up to 500ft (150m) or up to 1,000ft (300m) with optional Extended Range Antenna

• Independently programmable channels and up to 15 transmitter button codes per channel

• Pushbutton programming, no jumpers to cut or switches to set

• 5 Output modes channel timed pulse (0.5~99sec), timed pulse (1~99min), toggle, latch, and follow (validity)

• Compatible with all ENFORCER SK-series transmitters of the receiver s base frequency and the optional Extended Range Antenna s frequency

• Specifications:

  Operating frequency		315MHz*
  Memory capacity		15 per channel
  Operating voltage		10~24 VAC VDC
  Operating current		Standby: 16mA@12VDC, 12mA@24VDC, Active: 60mA@12VDC, 50mA@24VDC (both per channel)
  Relay output modes		Type: Independent, sequence, access control, Modes: .05~99 sec momentary (default, 1s) 1~99 min momentary, toggle, latch, follow (validity)
  Relay contacts		Number: 2, Rating: Form C 10A@14VDC
  Connectors		Screw terminals, +, -, with NO NC COM per relay
  Digital display		2-digit, 7-segment LED
  Operating humidity		5~95%, non-condensing
  Operating temperature		32°~167° F (0°~75° C)
  Dimensions		4-3 16 x7 8 x2-3 8 (107x23x60 mm)

  *Can simultaneously receive 433.92MHz signals with optional SK-93ERSD Extended Range Antenna

  Downloads:

  • User Manual

  • Product Information Data Sheet

  • Comparison Chart
