Description

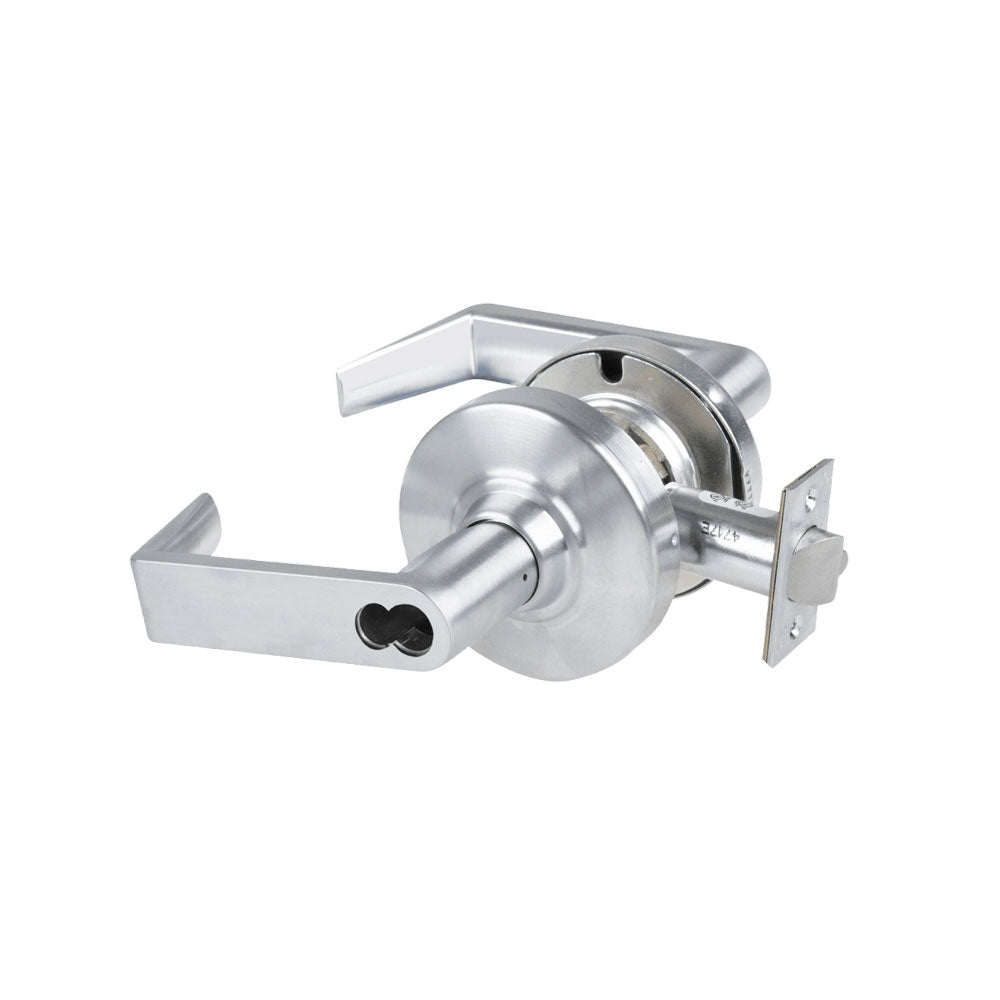

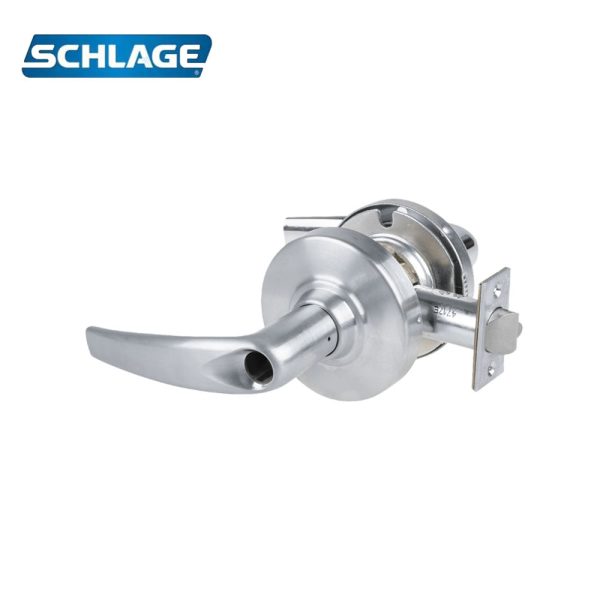

Schlage – ND98 – Classroom Security (180-Degree Lockdown) with Cylindrical Lock – Keyed Different – Grade 1

The Schlage ND Series offers a full breadth of commercial lock options with a suited combination of mechanical, electrified and electronic options. The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications.

Features:

• Significantly exceeds ANSI BHMA A156.2 requirements for Grade 1 cylindrical locks
• Nine lever designs, two rose designs also available
• 10 available finishes
• Supports standard, SFIC and FSIC cylinder formats
• Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
• Support for 10 non-Schlage cores

• Product Specifications:

  Manufacturer		Schlage
  Grade		Grade 1
  BAA Qualified		Yes
  Installation		Commercial
  Fire Rating		3 Hours {A}
  ADA Compliance		Yes
  UL Listing		UL cUL Listed
  ANSI		ANSI A156.2 Series 4000, Grade 1

  Technical Specifications:

  Handing		Non-Handed
  Std. Strike Number		10-025
  Std. Strike Height		4-7 8
  Std. Strike Width		1-1 4
  Pins		6
  Std. Latch Type		Deadlatch
  Screws		Wood Machine Screws
  Std. Latch Backset Dim		2-3 4
  Lock Face Size		2-1 4 x 1-1 8
  Std. Strike Type		ANSI Strike
  Std. Latch Number		13-247
  Rose Dimensions		3-7 16
  Door Thickness		1-5 8 to 2-1 8
  Function		98-Classroom Security (180-degree lockdown)
  Keying		Keyed Different
  Cylinder Type		LD – Less Cylinder BD – SFIC Prep Less Core JD – Schlage FSIC Prep Less Core

  Downloads:

  • Data Sheet
  • Installation Instructions

  • Additional information

  Color	US26D – Satin Chromium Plated (626)
  Cylinder	FSIC Prep Less Core, Less Cylinder, SFIC Prep Less Core
  Lever Style	Athens, Rhodes, Saturn, Sparta
