Description

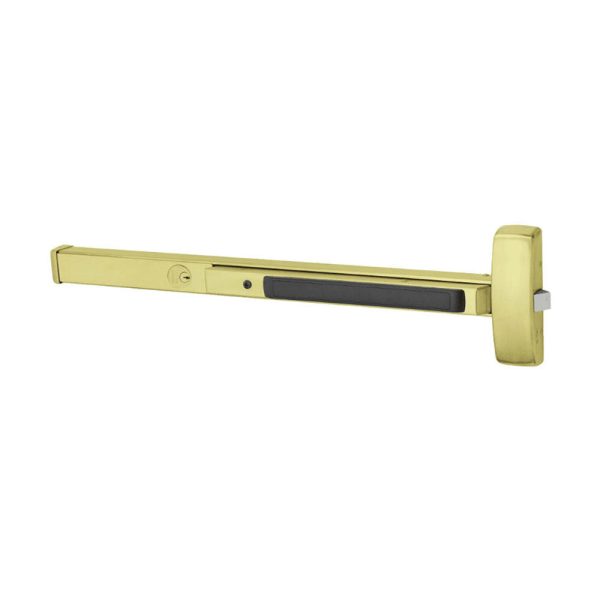

Sargent – 8888F – Multi-Function Rim Exit Devices – Wide Stile Pushpad – Exit Only – Cylinder Dogging – 36 – Grade 1

The 8800 series is designed for standard width stile applications on wood and metal doors. The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent s full line of exit devices.

Features:

• Single point rim latching device
• Single door and double door applications with mullions
• Quiet operation and solid security
• Devices are ANSI A156.3 – Grade 1
• UL Fire and Panic listed

• Product Specifications:

  Manufacturer		Sargent
  Grade		Grade 1
  ADA Compliance		No
  BAA Qualified		Yes
  Fire Rating		No
  ANSI		ANSI BHMA A156.3
  UL Listing		UL10C and UL305

  Technical Specifications:

  Mechanical Function		Exit Only, Accepts Various Trim
  Cylinder		Cylinder not Included
  Physical Appearance		Wide Stile Pushpad
  Door Thickness		1-3 4 – 2-1 4
  Door Material		Metal or Wood
  Includes Trim		No
  Device Length		36
  Minimum Stile Size		4-3 4
  Door Width		33 to 36
  Dogging Options		Cylinder Dogging, Cylinder Included

  Download:

  • Installation Instruction

  • Additional information

  Color	US10B – Dark Oxidized Satin Bronze Oil Rubbed (613), US3 – Bright Polished Brass (605), US32D – Satin Stainless Steel (630)
  Cylinder	LFIC Prep Less Core, Less Cylinder, SFIC Prep Less Core, Schlage-C Keyway Cylinder, Keyed Different
  Handed	Left Hand Reverse, Right Hand Reverse
