Description

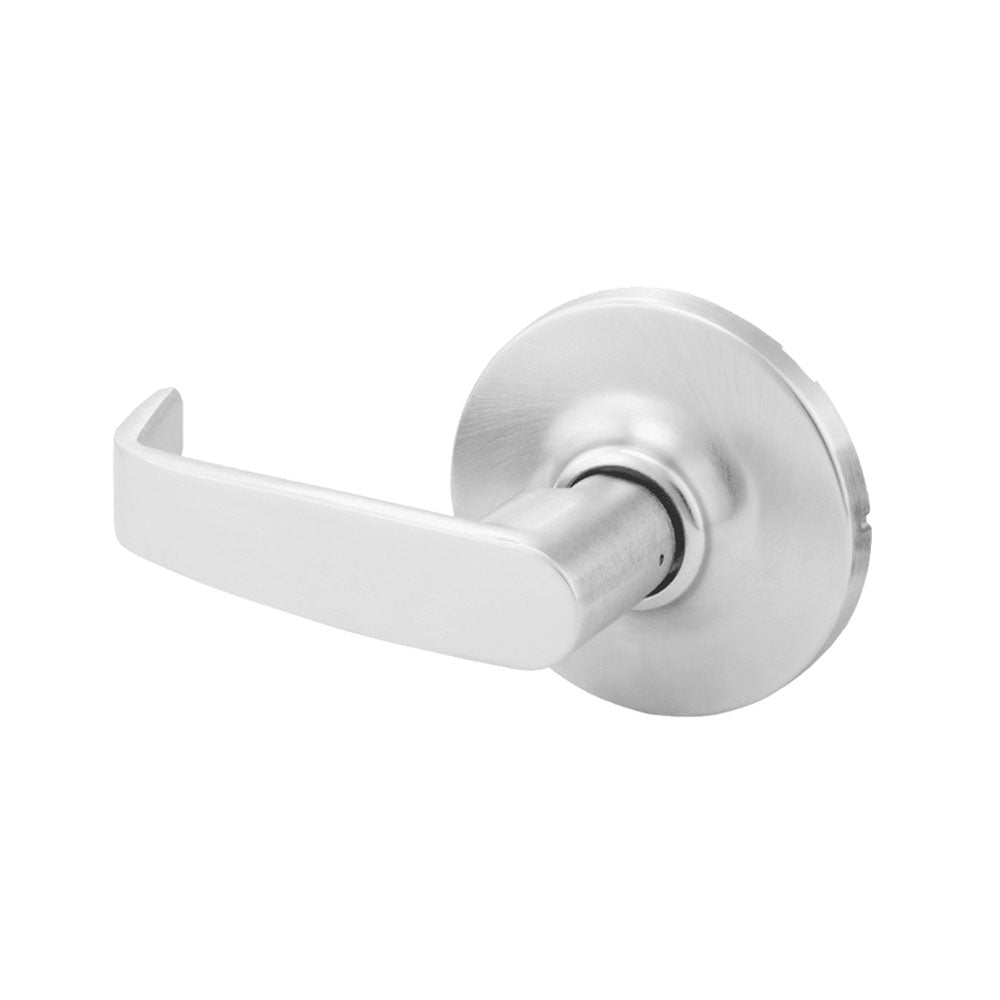

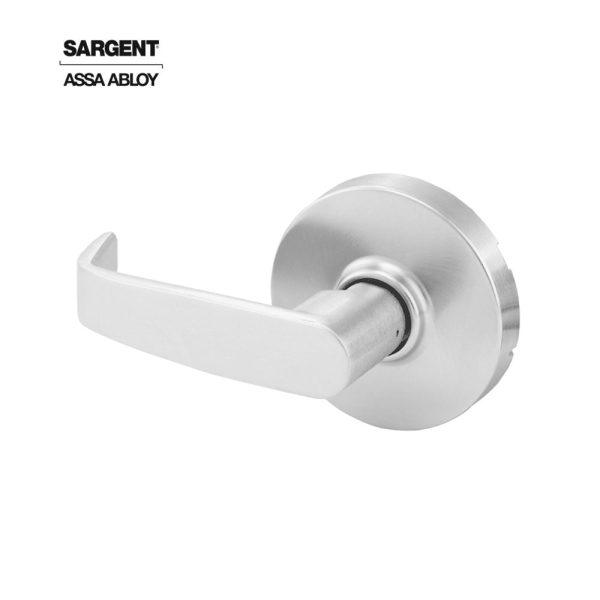

Sargent – 10XU94 – Double Lever Pull Trim – L Lever – Non-Keyed – Grade 1

The 10X Line has been put through rigorous above and beyond ANSI BHMA testing, surpassed some testing by more than 20X the ANSI BHMA requirements making it the strongest, most reliable cylindrical lock on the market

Features:

• Compatible with several security key systems (Degree, Signature, KESO, etc.)
• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI BHMA A156.2 requirements)
• Withstands 1,600 lbs offset lever pull (8x ANSI BHMA A156.2 requirements) and continues to restrict entry
• Ensures latch retraction with 100lb preload (2x ANSI BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Prohibits entry after more than 100 vertical impacts (20x ANSI BHMA A156.2 requirements)
• Innovative push turn button design prevents damage from door stops and walls
• 26 mechanical functions offered
• Available in 14 finishes with multiple lever designs
• Optional Microshield antimicrobial coating available
• Lockbody design supports all cylinder formats – from fixed to interchangeable core
• Provides maximum resistance to vandalism and other malicious attacks
• Certified above and beyond testing to withstand high volume traffic
• Complements the look of any design style
• Minimizes inventory stocking requirements
• Simplifies installation in new and retrofit applications
• Integrates with new or existing facility s key systems

• Product Specifications:

  Manufacturer		Sargent
  Grade		Grade 1
  Installation		Commercial
  Origin		United States
  Unit of Measure		Each
  Base Material		Brass, Bronze
  UL Listing Type		ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
  Manufacturer Warranty		10 Year Limited Warranty
  Fire Rated		3 Hours {A}
  Burglar Rated		No

  Technical Specifications:

  Function		94-Double Lever Pull
  Function Family		Dummy
  Lever Knob Design		L Lever
  Lever Knob Design Family		Straight Return Lever
  Rose Escutcheon Design		L Rose G Rose
  Rose Escutcheon Dimensions		3-1 2
  Cylinder Type		Non-Keyed
  Handing		Non-handed
  Door Thickness		1-3 4 to 2
  Std. Latch Number		10-2022
  Std. Latch Type		Springlatch
  Std. Latch Backset Dim		2-3 4
  Std. Strike Number		808
  Std. Strike Type		ANSI Curved Lip Strike
  Std. Strike Height		4-7 8
  Std. Strike Width		1-1 4
  Screws		Wood Machine Screws
  Product Type		Cylindrical Lock

  Download:

  • Installation Instruction

  • Additional information

  Color	BSP – Black Suede Powder Coat, US26D – Satin Chromium Plated (626)
  Rose/Escutcheon	G Rose, L Rose
