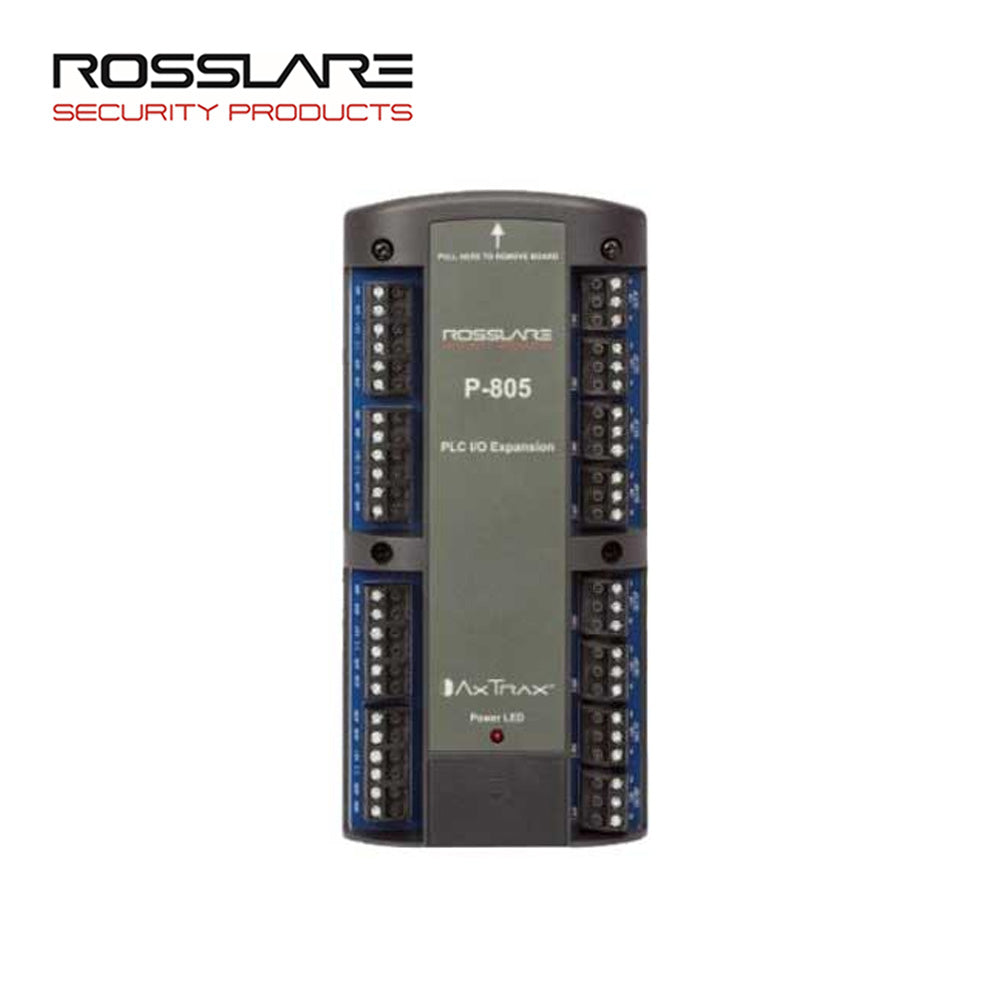

Rosslare – P-805 – Controller Expansion Board – 16 Inputs and 8 Outputs for AC-825IP

The P-805 is a 16-Input, 8-Output expansion board for the AC-825IP networked controller. The expansion board supports 16-supervised inputs and 8 relays (5 A Form-C) for general purpose and security application. An expansion slot can expand the controllers and up to 12 extensions can be connected via OSDP connected.

Specifications:

Enclosure		ME-1515 (up to 2 R S D P expansions)
Enclosure SMPS		Input: 90 to 265 VAC, 50-60 Hz, Switch mode power management board Output: 12 VDC, 4 A
PCBA Input Power		12 VDC, 2 A, regulated power management board
Battery Charger		12 V sealed lead acid (SLA) up to 7 Ah
Relays 5 A, Form-C		8
Inputs		16
Readers (Wiegand+OSDP)		N A
Connectivity		OSDP
Board Dimensions		7.0 x 3.4 x 1.1 in.
Enclosure Dimensions		13.6 x 15.9 x 3.9 in.
Dimensions		6.2 x 2.3 x 1.3 in.
Weight		200 g (7.1 oz)
