Description

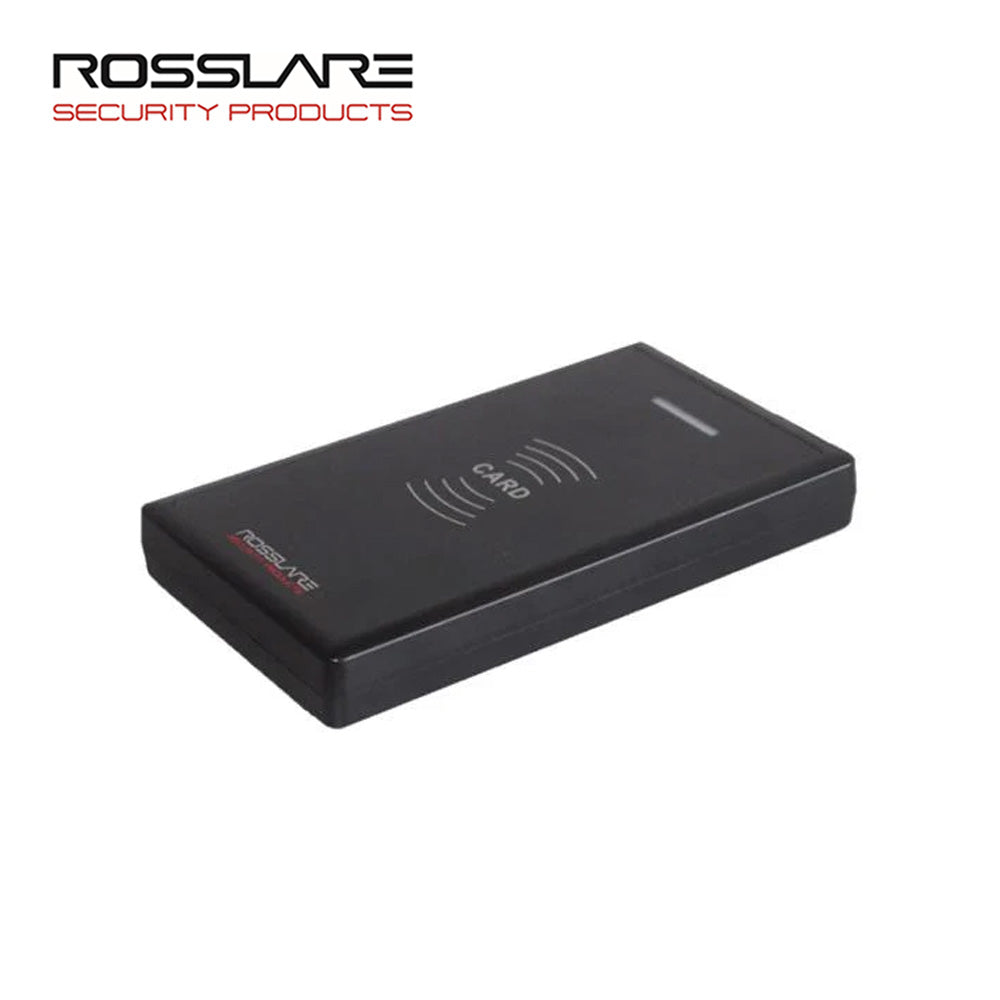

Rosslare – DR-6280 – MIFARE Classic and DESFire EV1 Desktop Enrollment Reader

The DR-6280 is an advanced MIFARE Classic EV1 and MIFARE DESFire EV1 O2S Desktop Reader. It reads the O2SID Data and CSN and transmits it to access control software, such as Rosslare s AxTraxNGâ„¢. With MIFARE Classic EV1 and MIFARE DESFire EV1 credentials, you have access to the highest levels of cryptographic security with support for 128-bit AES encrypted communications between reader and credential. With O2S preprogrammed readers and credentials, you can have the highest level of secure access control solutions right out of the box. The DR-6280 lets you use custom secured credentials. These credentials can be configured at the customer site using a reader configuration card.

Features:

• Contactless Smart Card Reader (13.56 MHz).
• Meets ISO14443 Type A Standard.
• Reads O2S ID data from an O2S credential.
• Uses NxP SAM AV2 for identify and communication cryptography.
• AES 128-bit encryption during the transmission of an ID from a MIFARE DESFire EV1 credentials.
• Reads CSN of non-O2S MIFARE credentials.
• BI-Colored LED.
• Supports USB 2.0 Standard (compatible with USB 1.1), meets the EIA standard.

• Specifications:

  Operating Voltage		5 VDC (USB powered)
  Operating Current		Standby: 87 mA Maximum: 135 mA
  Supported Transponders		MIFARE Classic EV1 MIFARE DESFire EV1
  RF Modulation		ASK
  Read Range		Up to 50 mm (2 in.)
  Output Format		O2S – Preprogrammed key Custom – Wiegand 26, 32, 34, 40, 56, 64, 128-bit and customized
  OS Support		Windows 7 32-bit and 64-bit Windows 10 32-bit and 64-bit
  Operating Environment		Indoor use
  Operating Temperature Range		0°C to 63°C (32°F to 145°F)
  Storage Temperature Range		-20°C to 63°C (-4°F to 145°F)
  Relative Humidity Range		0 to 95% (non-condensing)
  Weight		130 g (0.28 lb)
  Dimensions (L x W x H)		123 x 70 x 16.2 mm (4.9 x 2.8 x 0.6 in.)

  Downloads:

  • Data Sheet

  • Additional information
