Description

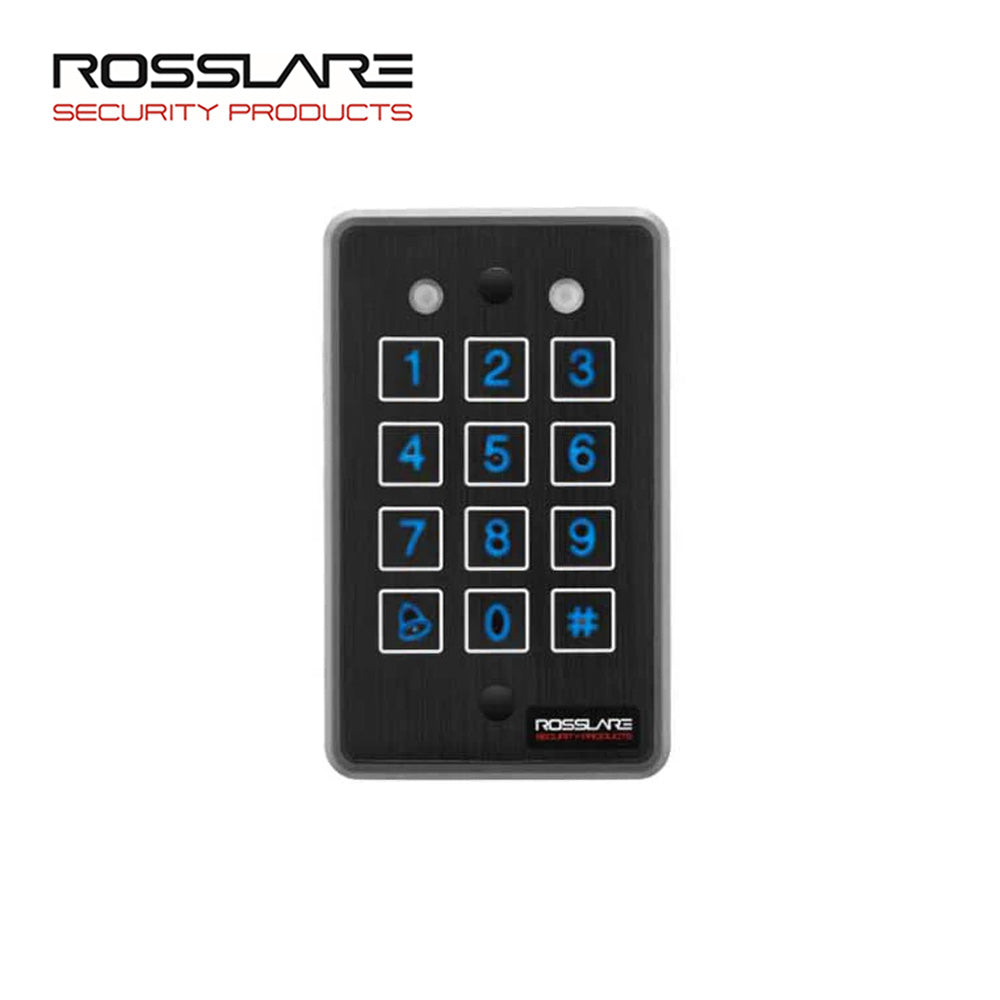

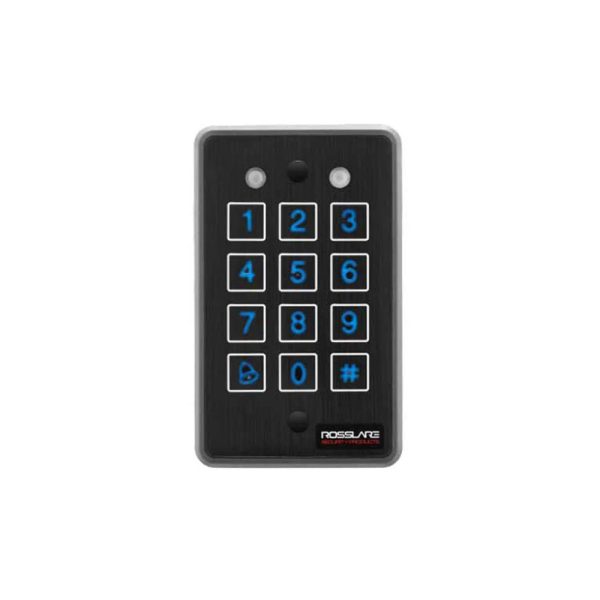

Rosslare – AYC-T65B – Convertible Ultra-Slim Proximity & PIN Reader – Black

The AYC-T65B offers programmable PIN & Proximity transmission formats, LED control and tamper detection, providing extra security and flexibility. Come rain or shine, this unit can handle the challenge, with its rugged metallic housing and waterproof enclosure for maximum durability. The high sensitivity, illuminated piezoelectric keypad, with its auto-dimming options is clearly visible day or night, allowing easy and smooth operation making these units ideal for residential and commercial applications.

Features:

• Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags.
• Smooth, attractive design, with all-weather indoor and outdoor operation.
• Large, highly-visible unique illuminated piezoelectric keypad.
• Optical back tamper detection output.
• 2 tri-colored LEDs and an integral sounder for programming and operation.
• User-friendly menu, based on LED and sounder indicators.
• Back and cover optical tamper detection and output.
• Automatically recognizes a connection to PS-x25T intelligent power supplies and converts into a 500- user standalone controller with secure relays.

• Specifications:

  Operating Voltage Range		5-16 VDC
  Input Current		92 mA
  Input Current Max		105 mA
  Max Read Range		40 mm
  Keypad		3×4 blue illuminated keys (Always On, Always Off and Auto Dimming options) for local programming and 4- to 8-digit PIN codes entry
  Audio Visual		Two tri-colored LED indicators, built-in buzzer
  Capacity		500 users, single dual PIN code each
  Security Modes		Normal, Bypass and Secure
  LED Control		Dry Contact N.O.
  Facility Code		Programmable
  Read Card Format		Selectable Wiegand 26-Bit, Clock & Data
  Operating Temperature		-30°C to 65°C (-22°F to 150°F)
  Dimensions		121 x 70 x 8 mm (4.77 x 2.76 x 0.31 in.)
  Weight		121 g (0.27 lb)

  Downloads:

  • Data Sheet
