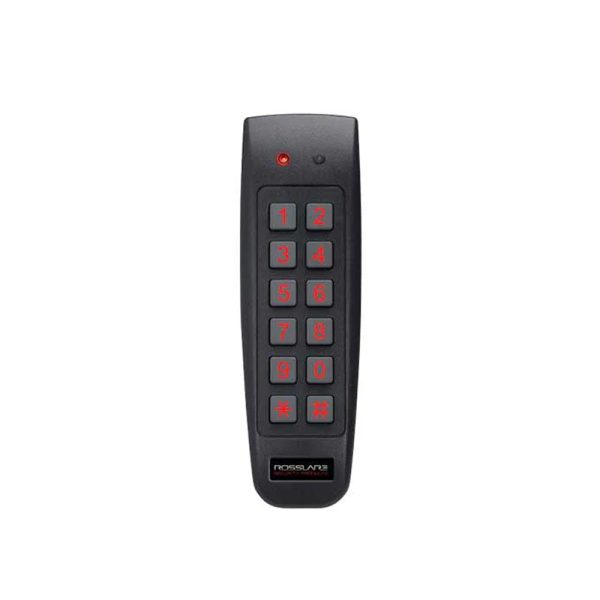

Rosslare – AYC-G64 – Mullion PIN Convertible Reader Controller

The AYC-G64 offers programmable PIN and proximity transmission formats, LED control and tamper detection, providing extra security and flexibility. Come rain or shine, this unit can handle the challenge, with its rugged ultraviolet-resistant housing and waterproof enclosure for maximum durability. The backlit keypad is clearly visible day or night, making this unit ideal for residential and commercial applications.

Features:

• Supports 4- to 8-Digit PIN credentials and 125 KHz EM type RFID cards and tags.
• Smooth, attractive design, with all-weather indoor and outdoor operation.
• Large, highly-visible RED backlit keypad.
• 2 tri-colored LEDs and an integral sounder for programming and operation.
• User friendly menu, based on keypad, LED, and sounder indicators.
• Back and cover optical tamper detection and output.
• Default operation as a multi-format reader (Wiegand 26-Bit Clock & Data).
• Automatically recognizes Rosslare s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays.
• 8 selectable PIN transmission modes including options for key stream, Binary, Parity, and 3×4 Matrix.
• Supports Wiegand 26-Bit or Clock & Data transmission formats.
• 3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN).
• 60 cm (23.6 in.) shielded interface cable.
• Meets IP65.

• Specifications:

  Operating Voltage Range		Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies
  Input Current		105 mA
  Input Current Max		140 mA
  Tamper		Open collector, active low, 32 mA max sink current
  Keypad		2×6 keys for local programming and 4- to 8-digit PIN codes entry
  Design		Epoxy potted, fully sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments.
  Security Modes		Normal, Bypass, Secure
  Audio Visual		Two tri-color LED indicators, built-in buzzer
  LED Control Input		Dry Contact N.O.
  Facility Code		Programmable
  PIN Code Formats		8 selectable formats, from single to 8-digit PIN codes, including: – Wiegand 6-Bit or 8-Bit, nibble parity options, optional Rosslare – 1-5 keys, fixed 4 keys, 6 keys BCD w Facility code, Wiegand 26-bit – 2×6 Matrix single key – 1 to 8 keys BCD, Clock & Data
  Capacity		500 users, single dual PIN code each
  User Levels		Normal, Secure, Master
  Security Modes		Normal, Bypass, Secure
  Inputs		REx (Request to Exit) Auxiliary Door Monitor with 10 programmable modes
  Operating Temperature		-35°C to 66°C (-31°F to 151°F)
  Operating Environment		Weather-resistant, meets IP65, epoxy-potted, suitable for outdoor use
  Dimensions		137 x 44 x 21 mm (5.4 x 1.7 x 0.8 in.)
  Weight		160 g (5.6 oz)
