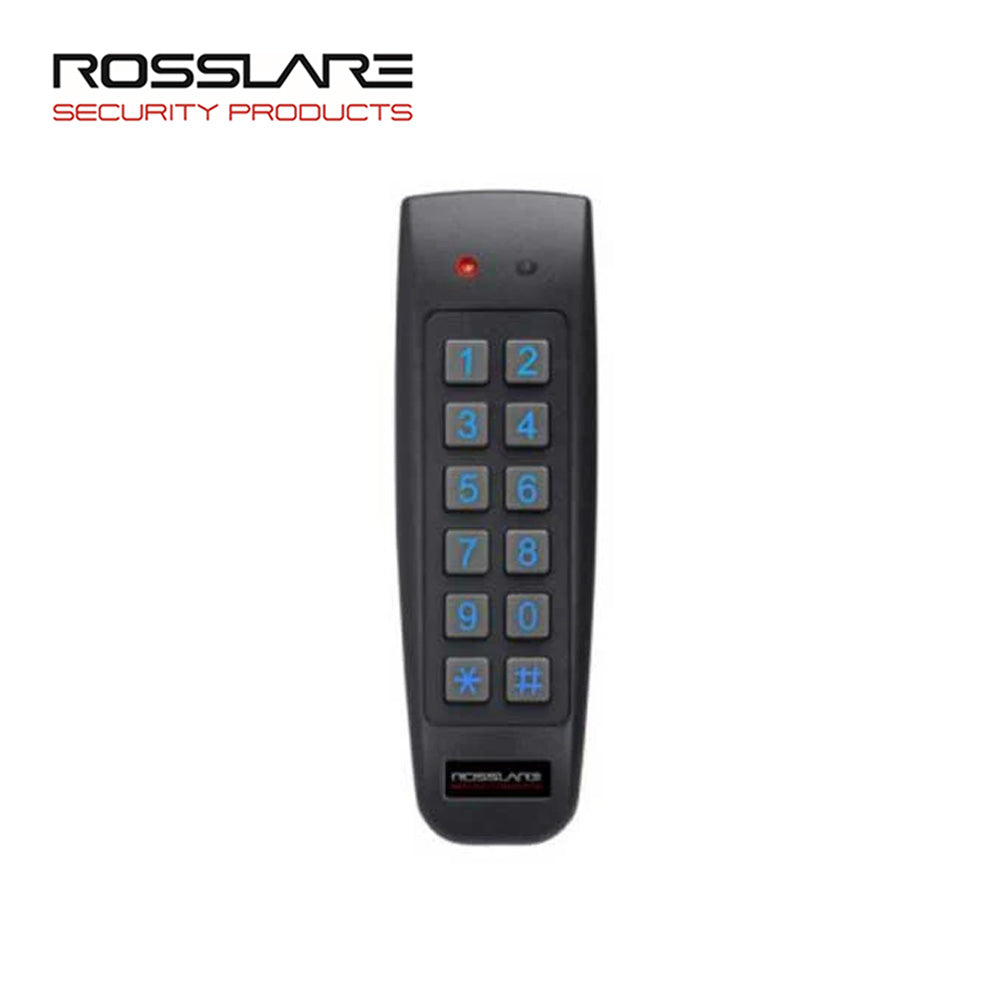

Rosslare – AYC-G60 – Mullion Go Prox and PIN Convertible Reader Controller

The AYC-G60 can read all HID Prox Cards Tags (125 kHz FSK) using Genuine HID Technologyâ„¢ and outputs HID Prox card data in Wiegand according to the number of bits of data stored on the card. The units also read Rosslare PROx – EM Proximity Cards (125 kHz – EM) and can output EM card data as Wiegand 26-Bit, Clock & Data, and Wiegand + PIN. As a controller, the units accept up to 500 users, and allow entry via a personal identification number (PIN) and or by presenting a proximity card. The PIN code length for the controller can vary. The PIN code length can be a set number of 4, 5, or 6 digits or it can be flexible from 4 to 8 digits.

Features:

• Advanced, secure, multi-application functionality for intelligent installations.
• Smooth, attractive design, with all-weather indoor and outdoor operation.
• 2 tri-colored LEDs and an integral sounder for programming and operation.
• Unique backlit piezoelectric keys.
• User-friendly menu based on keypad, LED, and sounder indicators.
• Back and cover optical tamper detection and output.
• Default operation as a multi-format reader (Rosslare PROx and HID Genuine Technologyâ„¢ formats, Wiegand 26-Bit, Clock & Data).
• Automatically recognizes Rosslare s PS-x5 intelligent power supply family, converting into a 500-user standalone controller with secure relays.
• 3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN).

• Specifications:

  Operating Voltage Range		5-16 VDC
  Standby Input Current		100 mA
  Maximum Input Current		140 mA
  Tamper Output		Open collector, active low, max. sink current 32 mA
  LED Control Input		Dry Contact N.O.
  Cable Distance Host Controller		Up to 150 m (500 ft) using an 18 AWG cable
  Max Proximity Card Range		60 mm (2.36 in.)
  Proximity Card Modulation		ASK and FSK at 125 kHz
  Card Transmit Format (Reader)		Rosslare PROx – EM cards: Wiegand 26-Bit, or Clock & Data FSK cards: According to card type
  LED Indicators		Two tri-colored LEDs
  Compatible Cards		125 kHz and or dual technology ISO cards, clamshell and tags
  Operating Temperature		-35°C to 66°C (-31°F to 151°F)
  Dimensions		137 x 44 x 21 mm (5.4 x 1.7 x 0.8 in.)
  Weight		160 g (0.35 lbs)

  Downloads:

  • Data Sheet

  • Additional information
