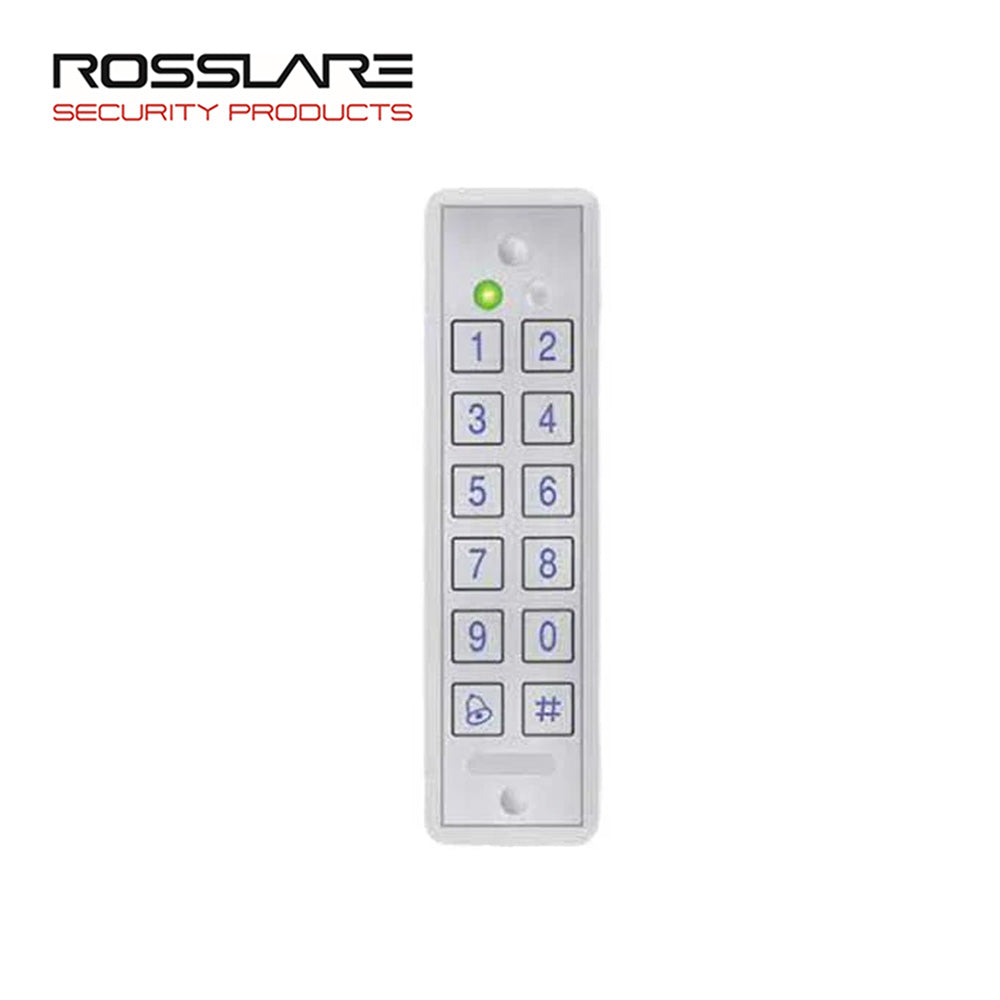

Rosslare – AYC-E65BW – Convertible Ultra-Slim Piezo Mullion Backlit Proximity and PIN Reader – White

The AYC-E65BW has a unique ultra-slim profile, smooth metallic surface and high sensitive piezoelectric keys, now combined with shiny illuminated digits and a Proximity card reader makes this unit highly attractive for all-weather PIN & Prox access applications. The AYC-E65BW offers highly attractive yet durable solution for any need. This unit can be operated as a keypad reader with any standard controller, and converts into a secure 500-users controller when connected to the PS-x5T intelligent power supply relay unit. This model comes with white antenna.

Features:

• Ulta-slim flush mount design.
• Built-in piezoelectric keypad for PIN code entry.
• Supports 4- to 8-Digit PIN credentials and 125 KHz EM type RFID cards and tags.
• Smooth, attractive design, with all-weather indoor and outdoor operation.
• Large, high-visibility unique illuminated piezoelectric keypad.
• Optical back tamper detection output.
• 2 tri-colored LEDs and an integral sounder for programming and operation.
• User-friendly menu system based on keypad, LED, and sounder indicators.
• Automatically recognizes a connection to PS-x25T intelligent power supplies and converts into a 500- user standalone controller with secure relays.

• Specifications:

  Operating Voltage Range		Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies
  Input Current		92 mA @ 12 VDC
  Input Current Max		105 mA @ 16 VDC
  Proximity Card Reader		Maximum read range*: 40 mm (1.6 in.) Modulation: ASK at 125 kHz Compatible cards: All 26-Bit EM Cards
  Keypad		2×6 blue illuminated keys (Always On, Always Off and Auto Dimming options) for local programming and 4- to 8-digit PIN codes entry
  Audio Visual		Two tri-colored LED indicators, built-in buzzer
  LED Control		Dry contact, N.O.
  Facility Mode		Programmable
  Operating Temperature		-30°C to 65°C (-22°F to 150°F)
  PIN Code Formats		8 selectable formats, from 1 to 8 digit length PIN Codes
  Dimensions		155 x 44 x 9 mm (6.1 x 1.73 x 0.354 in.)
  Weight		143 g (0.315 lbs)
