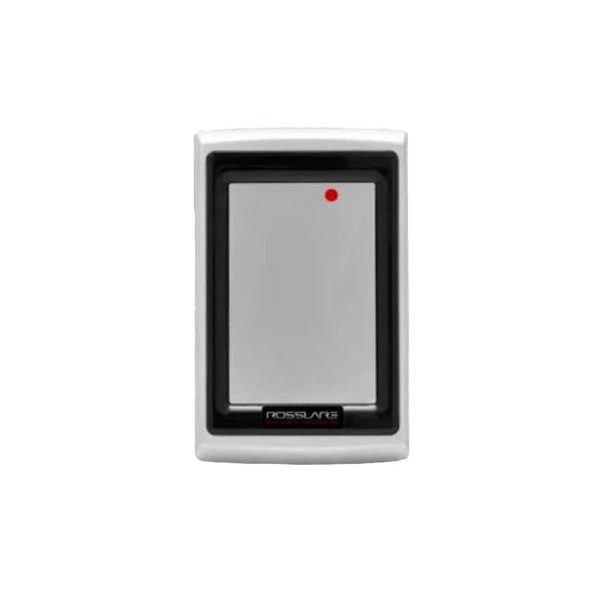

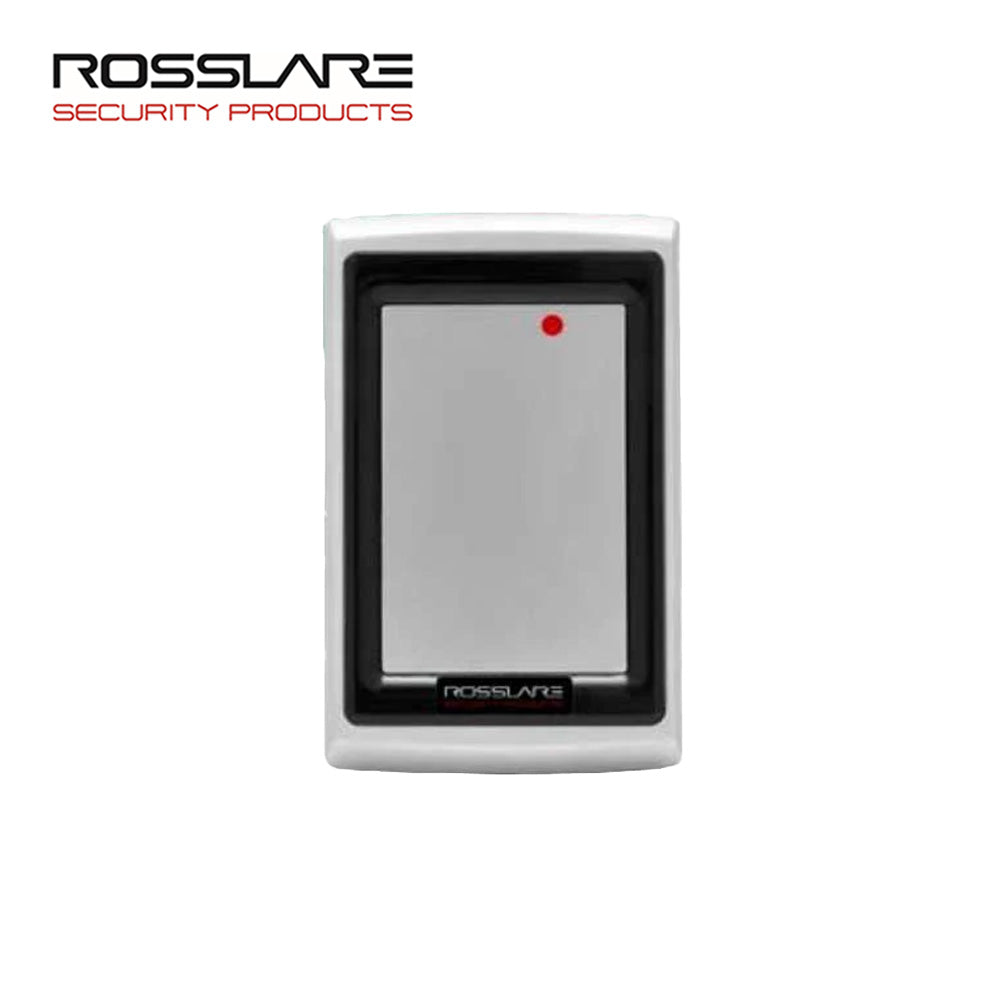

Rosslare – AY-Q6255 – Smart Card Anti-Vandal Reader – 13.56 MHz – IP65

The CSN SELECT AY-Q6255 is a multi-credential technology contactless smart card (13.56 MHz) reader that support access by an NFC compatible Android smartphone app for use in access control system solutions. The readers have the flexibility to read the Card Serial Number (CSN) from many smart card RFID standards, perfect for transitioning from one technology to another. UV resistant and with an IP65 rated sleek and modern design, the readers can be used comfortably in any installation environment whether indoors or outdoors. The AY-Q6255 readers are compatible with a variety of Rosslare controllers, as well as with many third-party access control systems supporting Wiegand or OSDP interfaces.

Features:

• Sleek and modern design.
• Tri-colored LED operation.
• Optical wall tamper detection.
• Addressable OSDP connectivity up to 32 addresses using DIP switches.
• IP65 rated and made of tough polycarbonate UV resistant plastic.
• Selectable Wiegand output formats: CSN Wiegand 26-Bit RS-485 – OSDP.
• Comes with mounting template and installation kit for easy installation.

• Specifications:

  Operating Voltage Range		8 ~ 16 VDC, from a regulated power supply
  Standby Current @12V		100 mA
  Maximum Current @12V		150 mA
  Read Range		2 in.
  Tamper Output		Open collector, active low, max. sink current 16 mA
  Control Input		Dry Contact, N.O
  Reader Data Output Formats		CSN Wiegand 26-Bit RS-485 – OSDP
  ISO14443A Smart Card		– MIFARE Ultralight Nano Ultralight EV1 Ultralight C – MIFARE Classic Classic EV1 – MIFARE Plus S SE x EV1 – MIFARE DESFire EV1 EV2 – NFC N-TAG Card Emulation
  ISO14443B Smart Card		China National ID
  ISO15693 Smart Card		HID iClass, PicoPassâ„¢, iCode, LEGIC
  ISO18092 Smart Card		SONY FeliCa (Hong Kong Octopus)
  Dimensions		4.7 x 3.0 x 0.9 in.
  Weight		410 g (14.5 oz)
  Device Certifications		IP65
