Description

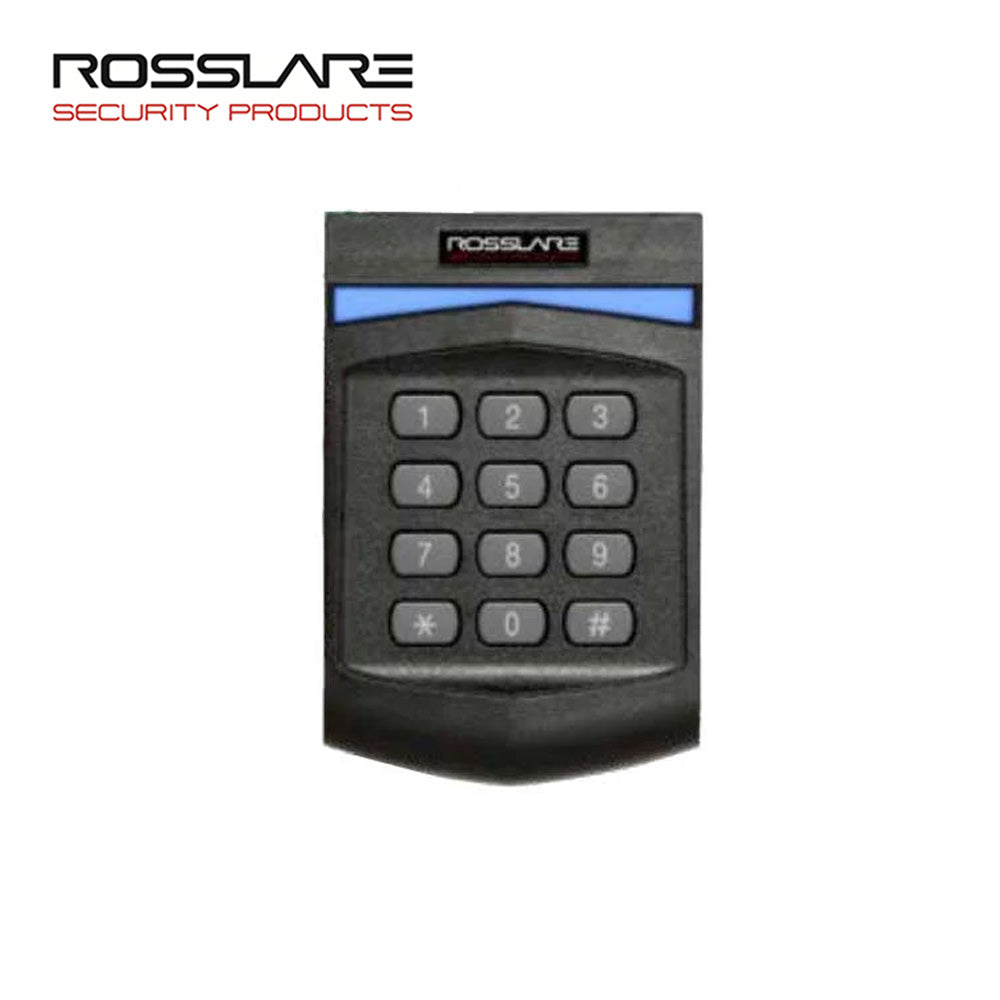

Rosslare – AY-H6370B-P00 – Open To Secure Multi-Format Reader with Pigtail and MIFARE Plus Classic EV1 Readers

Rosslare s Open to Secureâ„¢ (O2S) reader is a highly flexible smart card reader that redefine ease of use and high security in the world of RFID access control solutions. The readers support reading from and writing to the secure memory of the world s most accepted RFID technologies – MIFARE Plus, and MIFARE Classic EV1.

MIFARE credentials, you have access to the highest levels of cryptographic security with support for 128-bit AES encrypted communications between reader and credential. With O2S preprogrammed readers and credentials, you can have the highest level of secure access control solutions right out of the box.

Features:

• Contactless smart card reader (13.56 MHz).
• Meets ISO14443 Type A Standard.
• AES 128-Bit encryption during transmission (MIFARE Plus and MIFARE DESFire EV1).
• Reads O2S ID data from O2S credentials.
• Reads CSN of non-O2S credentials.
• Output formats: Wiegand (per format on O2S credential) OSDP via RS-485 (selected models).
• RGB multi-color light indicator.
• Blue backlit tact switch keypad.
• Fully-potted construction for indoor and outdoor use.
• Optical back tamper sensor.
• Two LED control inputs.
• Buzzer control input.
• Pigtail or terminal block connectivity.

• Specifications:

  Operating Voltage Range		6 to 16 VDC
  Standby Input Current at 12V		85 mA
  Maximum Input Current at 12V		110 mA
  Read Range		MIFARE Classic EV1: 1.5 to 1.8 in. MIFARE Plus: 1 in.
  LED Control		Two Inputs: Green LED CTL and RED LED CTL – TTL
  Auxiliary Input		Buzzer CTL or Hold CTL – TTL
  Auxiliary Output		Tamper Output (OC, active low, max. sink current 30 mA)
  Supported Data Formats		Proximity: Wiegand (per format on O2S credential) OSDP via RS458 (selected models)
  Maximum Cable Distance to Controller		Wiegand: 500 ft. with 18-AWG cable OSDP (RS-485): 4,000 ft. with 2×2 18-AWG twisted shielded cable
  Compatible Cards		MIFARE Plus x S (2K, 4K) and MIFARE EV1 Classic (1K, 4K)
  Operating Temperature		-31°C to 63°C (-24°F to 145°F)
  Dimensions of Pigtail		4.7 x 3.2 x 0.9 in.
  Weight		217 g (7.7 oz)
  Device Certifications		IP65
