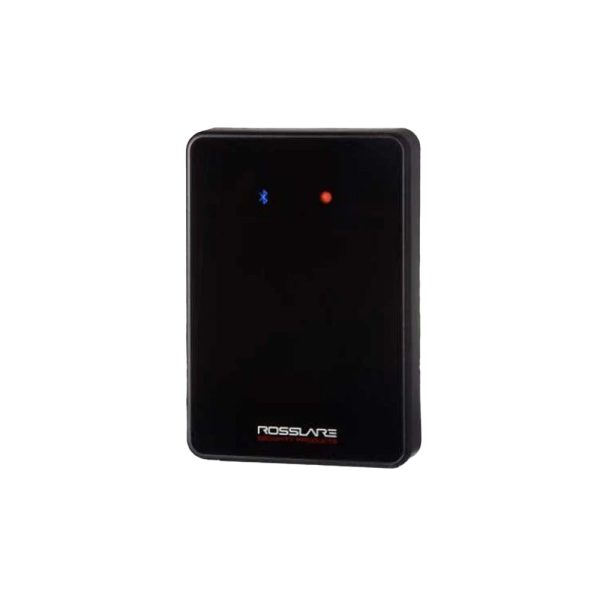

Rosslare – AY-H6255BT – CSN SMART – Smart Card Reader with NFC and BLE-ID

The innovative AY-H6255BT reader from Rosslare s CSN SMART series features support for three types of credentials – Rosslare BLE-ID™, Rosslare NFC-ID™, and 13.56 MHz RFID contactless UID. Featuring IP-65 (all-weather potted) construction, it is ideal for general purpose access control installations that want to take advantage of the latest convenience and flexibility features of mobility. The AYC-H6255BT readers are compatible with a variety of Rosslare controllers, as well as with many third-party access control systems supporting Wiegand or OSDP interfaces.

Features:

• NFC-ID is supported with Rosslare s APP-A415 NFC-ID Credential App for Android in Host Card Emulation(HCE) mode.
• BLE-ID is supported with Rosslare BLE-ID credential apps for iOS and Android OS.
• Eight keypad transmission formats are available.
• Mounting options for US gang-box.
• Reads the CSN from multiple smart cards.
• Sleek and modern design, superior mechanics, 10-wire 5-m cable.
• Addressable OSDP connectivity, up to 32 addresses using DIP switches.
• Compatible with CS-HCT Hardware Configuration Tool for Windows application.
• Two tri-colored LED indicators 1 audible buzzer.
• Optical wall tamper detection.
• Blue backlit keypad with power saving options (On, Off, Dimming).
• IP65 rated and made of tough polycarbonate UV-resistant plastic.
• Comes with mounting template and installation kit for easy installation.

• Specifications:

  Operating Voltage Range		8 to 16 VDC from a regulated power supply
  Current at 12 VDC		Standby 110 mA, max: 185 mA
  Read Range		Contactless 13.56 MHz and NFC – Up to 7 cm (2.75 in.) Bluetooth BLE 4.1 Connection – Up to 12 m ( 39 ft) open air
  Tamper Output		Open collector, active low, max. sink current 16 mA
  Control Inputs		Dry Contact, N.O.
  Reader Data Output Formats		CSN Wiegand 26-Bit and keypad with eight output formats and RS485 – OSDP
  ISO14443A Smart Card		– MIFARE Ultralight Nano Ultralight EV1 Ultralight C – MIFARE Classic Classic EV1 – MIFARE Plus S SE x EV1 – MIFARE DESFire EV1 EV2 – NFC N-TAG Card Emulation
  ISO14443B Smart Card		China National ID
  ISO15693 Smart Card		HID iClass, PicoPassâ„¢, iCode, LEGIC
  ISO18092 Smart Card		SONY FeliCa (Hong Kong Octopus)
  Operating Temperature Range		-35°C to 66°C (-31°F to 150°F)
  Dimensions		110.7 x 75.0 x 17.0 mm (4.4 x 3.0 x 0.7 in.)
  Device Certifications		IP65
  Weight		177 g (6.2 oz)

  Downloads:

  • Data Sheet

  • Additional information
