Description

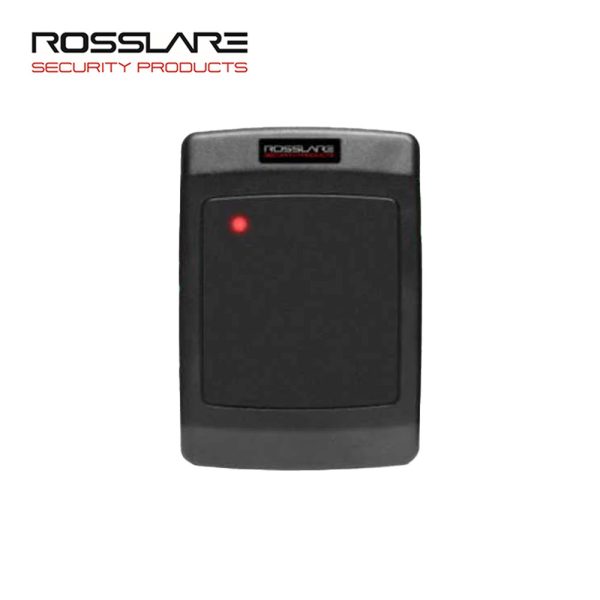

Rosslare – AY-H12C – Proximity Readers Series – 125 KHz – IP65

The readers are highly flexible with behavior control options. With a sleek design and a tough UV-resistant and water resistant casing, the AY-H12C are equally suited for indoor and outdoor use. The AY-H12C series is compatible with a variety of Rosslare s controllers, as well as with many third-party access control systems.

Features:

• Selectable output formats: Wiegand 26-Bit, RS-232, or Clock & Data.
• Excellent RFID card read range: 8 cm (3.2 in.) to 10 cm (3.9 in.).
• Wide range operating voltage: 5 to 16 VDC.
• Internal sounder with external control option.
• Made of tough polycarbonate UV-resistant plastic.
• Tri-color LED with external control inputs.
• 45 cm (18 in.) pigtail cable.
• RF Modulation: ASK at 125 kHz.
• External reader hold control.
• Optical wall tamper detection.
• Water-resistant with epoxy potting (IP65), suitable for indoor and outdoor applications.
• Comes with mounting template for easier installation.

• Specifications:

  Operating Voltage Range		5–16 VDC, from a regulated power supply
  Standby Input Current		60 mA @ 12 V
  Maximum Input Current		120 mA @ 12 V
  Proximity Card Reader		Maximum read range: 8 cm (3.2 in.) to 10 cm (3.9 in.) Modulation: ASK at 125 kHz Compatible cards: 26-Bit EM cards
  Tamper Output		Open collector, active low, max. sink current 16 mA
  LED Control Input		Dry Contact, N.O
  Output Format		Wiegand 26-Bit, RS-232, or Clock & Data
  Audio Visual		Tri-colored LED indicator, built-in sounder
  Design		Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Suitable for harsh environments
  Dimensions		4.3 x 3.0 x 0.6 in.
  Weight		100 g (3.5 oz)
  Device Certifications		IP65

  Downloads:

  • Data Sheet

  • Additional information
