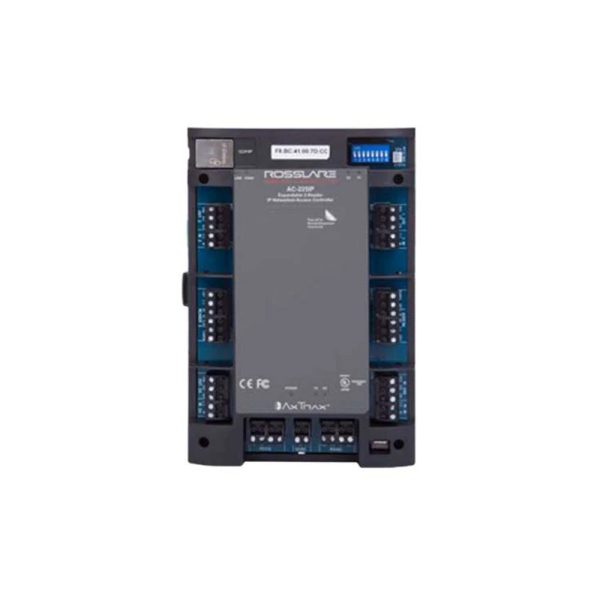

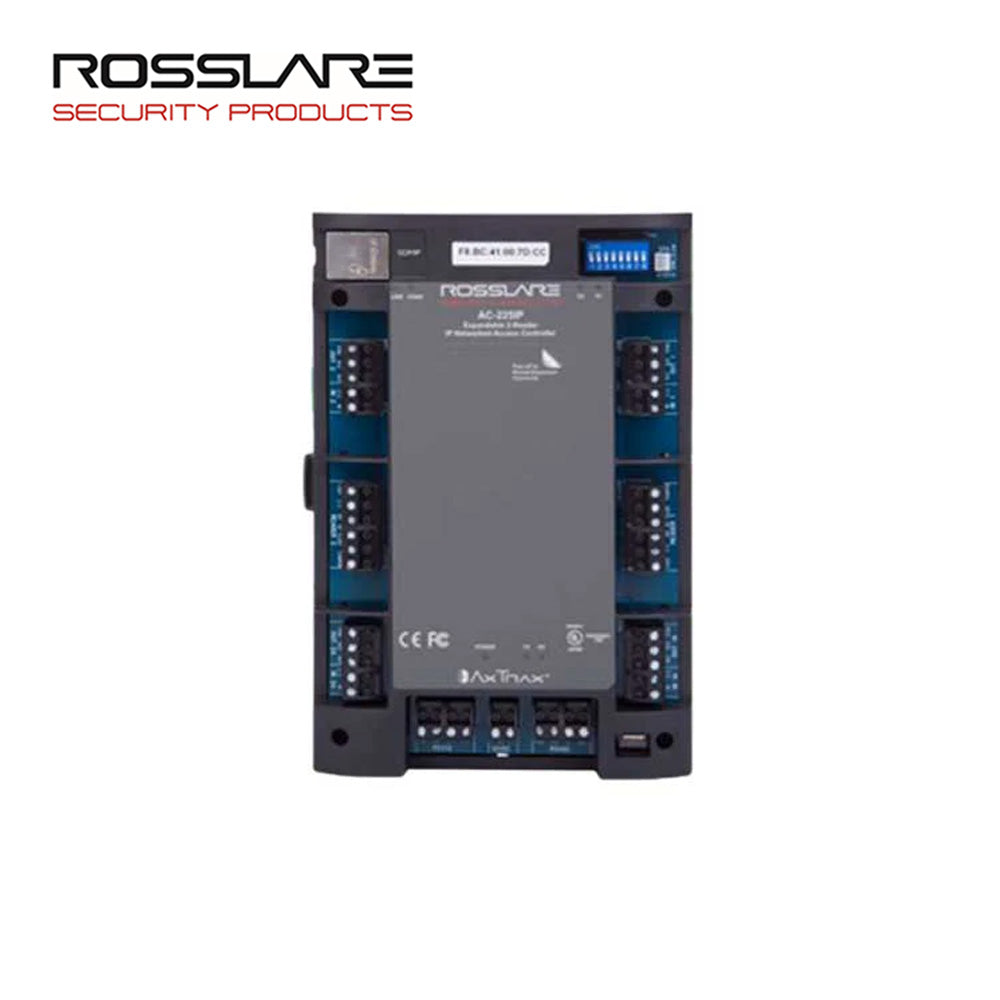

Rosslare – AC-225IP-DIN – DIN Housing Expandable Networked Access Control for 2 Readers – TCP IP

Features:

• DIN Housing for DIN Rail Mounting.
• Supports up to 30,000 users in off-line mode, unlimited server based capacity.
• 20,000 event history entries per computer.
• multi-user authentication for high-level security.
• supports a wide range of Wiegand and PIN formats.

• Specifications:

  Type		Network Control Panel DIN Housing
  Readers		2 reader ports, 4 reader Output voltage: 12 VDC Max. current: 245 mA LED control output and Tamper Input
  Inputs		4 supervised high impedance inputs. 8 or 12 supervised inputs when using MD-D02B or MD-IO84B expansion boards. Maximum voltage: 5 VDC
  Outputs		4 Form C 5 Amp relay outputs. 8 outputs when using MD-D02B or MD-IO84B expansion boards
  Interface		TCP IP
  TCP IP		Onboard RJ-45 connector
  Serial Ports		10 100 Ethernet Port
  Networking		Rosslare s AxTraxNGâ„¢ Server
  Users		30,000 active credentials (Card & PIN)
  Event Log		20,000 Events
  Housing		Protective Cover & DIN Rail Wall Mount
  Standard Approvals		CE – Safety, ENC, RFI, LVD RED 2104 53 EU; FCC – CFR47 Part 15b
  Dimensions		7.6 x 5.4 x 1.5 in.
  Enclosure		Protective cover, with 1 expansion slot for MD expansions
  Operating Temperature		0°C to 49°C (32°F to 120°F)
  Weight		0.36 kg (12.7 oz)
