Description

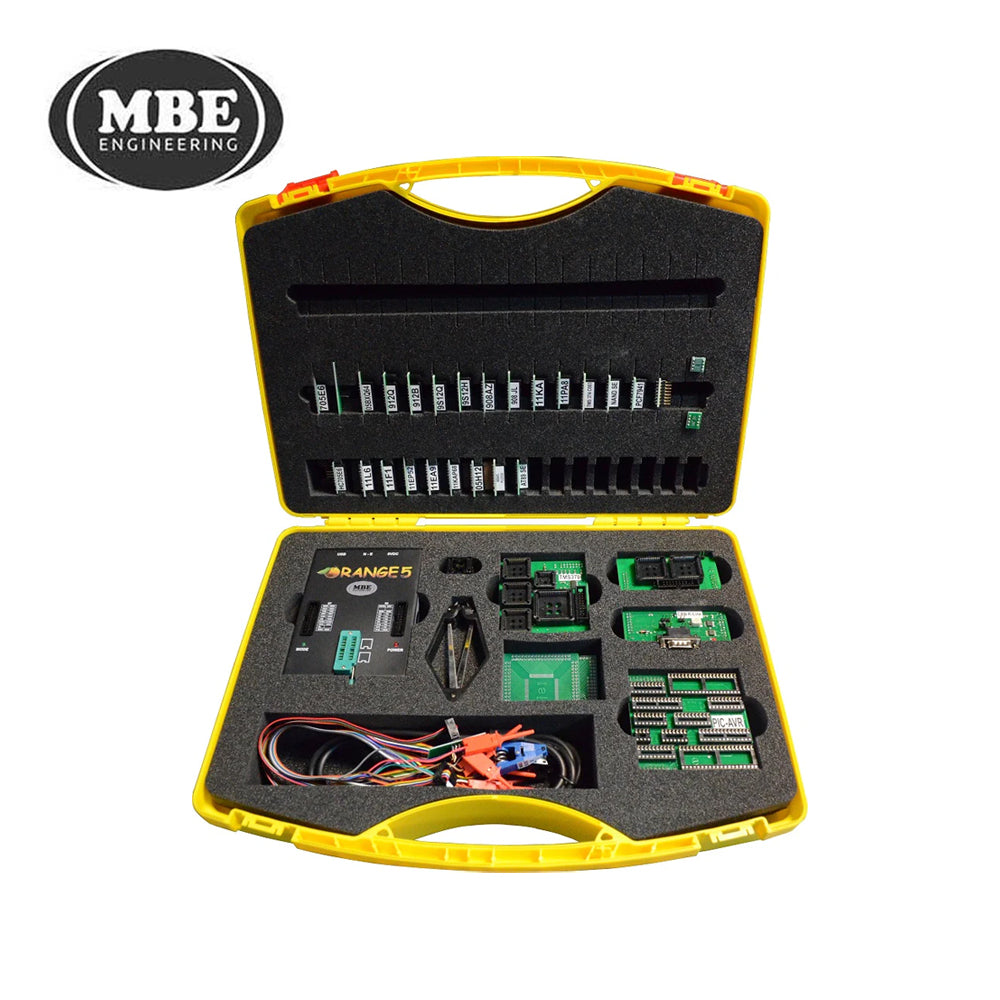

MBE Orange5 Full Standard Programmer Set

Orange5 is a professional programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro-language for writing down protocols, which gives fast and easy capability to add new types of micro-schemes, precisely meeting manufacturers requirements to read write algorithms. This set contains most of the popular adapters and is one of the most flexible EEPROM FLASH programmer, a powerful tool in your hands.

Technical Info:

• Connection and power via USB interface (USB2.0)
• Universal easy to plug panel ZIF16 for EEPROM
• Control of contacts in the sockets
• Two expansions connectors compatible with Orange4 and Omega MTRK
• Protection against overcurrent
• Overload voltage protection
• Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
• Three adjustable voltage and current control: Voltage of power supply ( 2.0…5.0V ), programming voltage (2.0…21.0V), additional fixed 10V for microcontrollers.
• High-speed bidirectional pin drivers with adjustable voltage (2.0…5.0V)
• Oscillator clock generator with frequency ( up to 24 Mhz) and out voltage (2.0…5.0V) adjustment.
• Capability of functional emulation of USB CDC devices.
• Built-in 32-bit virtual machine
• Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter);
• plastic case.

• Software

  • Maximum buffer size – 32Mb;
  • Users can create own HPL modules;
  • Edit 8 and 16 bits HEX values, as well as ASCII.
  • Read and write files in BIN, HEX, S19 formats;
  • Visual compare mode with highlight values;
  • Write all chip or marked area;
  • Support for multiple configuration files;
  • Auto-save backups;
  • Extended set of operations on the buffer;
  • Works under Windows XP (32 bit).

  • Set contains:

    • Orange5 device
    • Orange5 Software
    • Orange5 USB base + Motorola license
    • USB cable
    • SOIC8 clip POMONA with leads
    • PLCC extractor

    • Adapters in MBE FULL set

      • 912Q
      • ST62 SE
      • 908AZ
      • 9S12Q
      • 908 JL
      • 9S12H
      • 11KA
      • 11PA8
      • TMS 374 C003
      • NAND SE
      • SOIC8-16
      • SOP8 TSSOP-8
      • 11EP52
      • 11KAP68
      • 11L6
      • 11F1
      • 05H12
      • 908AS
      • AT89 SE
      • QFP100 112 144
      • QFP64 44
      • QFP48-80
      • TMS370
      • 05B2
      • PIC-AVR
      • Test clip hook

      • Extra

        • View supported microchips
        • Download software instructions
        • Download software installation (v. 1.36)
        • Additional information

          Title	Default Title

          Related products

          70%

          Add to wishlist

          Compare



          Select options This product has multiple variants. The options may be chosen on the product page

          Programming Devices

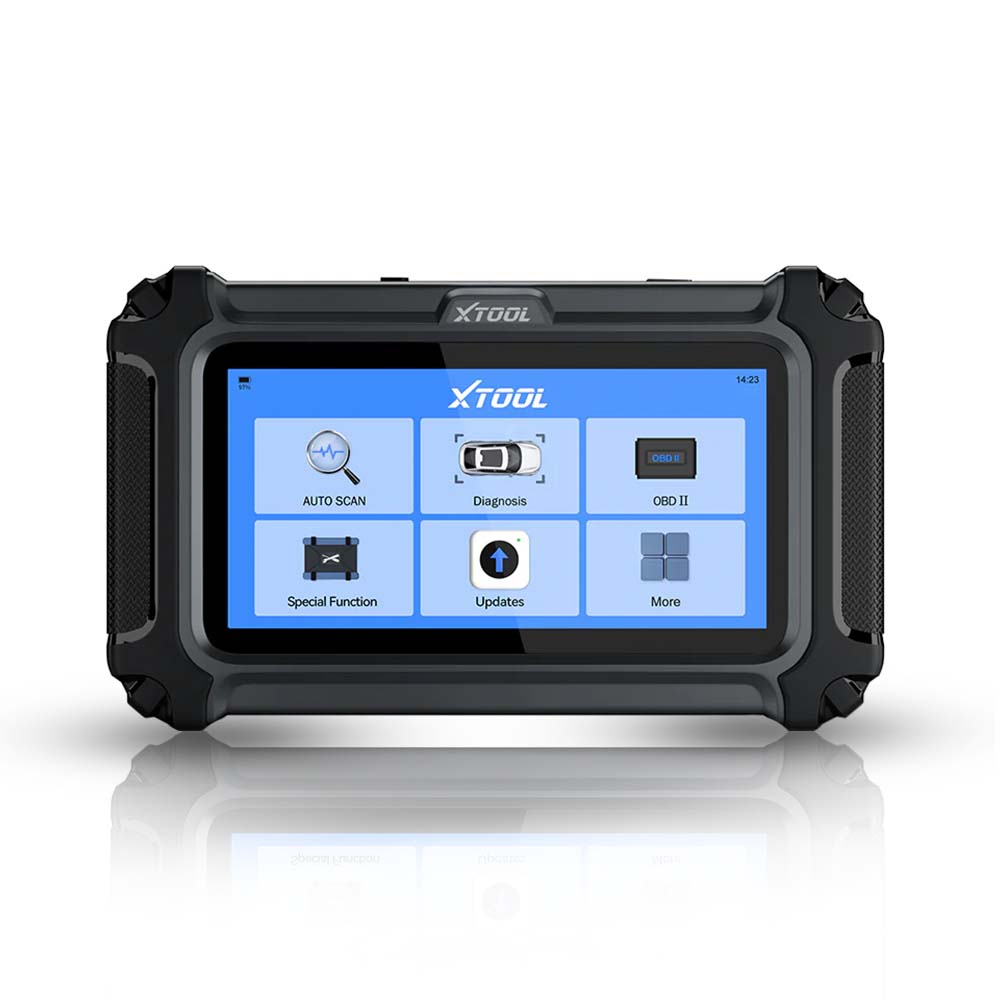

          XTOOL AutoProPad G3 Evolution with VVDI Key Tool MAX PRO Bundle Online Sale
