JMA Vienna Smart Semi-Automatic Key Cutting Machine – Single-Phase 220V Motor

VIENNA SMART is the new professional duplication machine model that combines simplicity and versatility for cutting flat keys for cylinder locks and vehicles, cruciform keys (cross) and special keys thanks to its four-sided clamp.

Features:

• Next-gen technologies and materials make it a strong duplication machine providing precision results.
• Robust but maintaining a design with clean lines and an ergonomic shape.
• The various shields covering all the moving parts of the machine provide operator safety during the duplication process.
• All the on and off buttons are easy to reach.

• Specifications:

  • Motor: Single-phase 220V, 50 Hz, 0.18Kw, 1350 rpm, 1.7 Amp.
  • Optional: 110V,60Hz, 0.18Kw, 1700rpm, 3.14Amp.
  • Measurements: 430 x 280 x 420 mm
  • Weight: 27 Kg.
  • Cutter: FP24 HSS (Ø80 x 5 x 16)

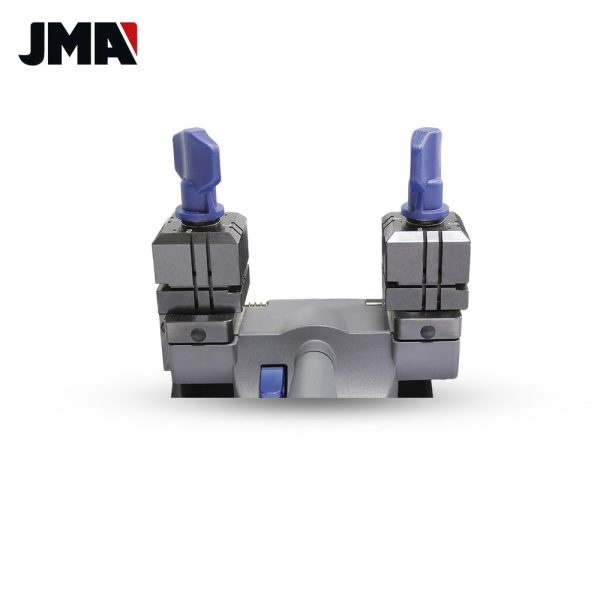

  • Clamps: 4-faced steel ML-4*
  • Width: 430 mm
  • Height: 280 mm
  • Depth: 420 mm
  • Weight: 27 kg
  • Speed: 650 rpm
  • Useful Run: X= 53 mm
  • Lightning: Led diodes
  • Transmission: Ribbed belts with self-tensing system
  • Displacement: Over self-lubricated bearings
  • Brush: Yes

  • VERSIONS:

    • VIENNA SMART Portugal – Motor: 220V, 50 Hz, 0.18Kw Special Four-sided Sofer Clamp
    • VIENNA SMART 110 – Motor: 110V, 50 60 Hz, 0.18Kw Four-sided Clamp
