Description

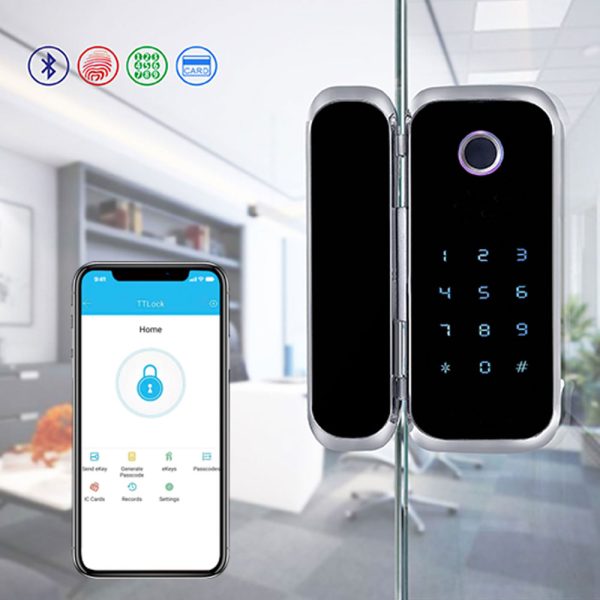

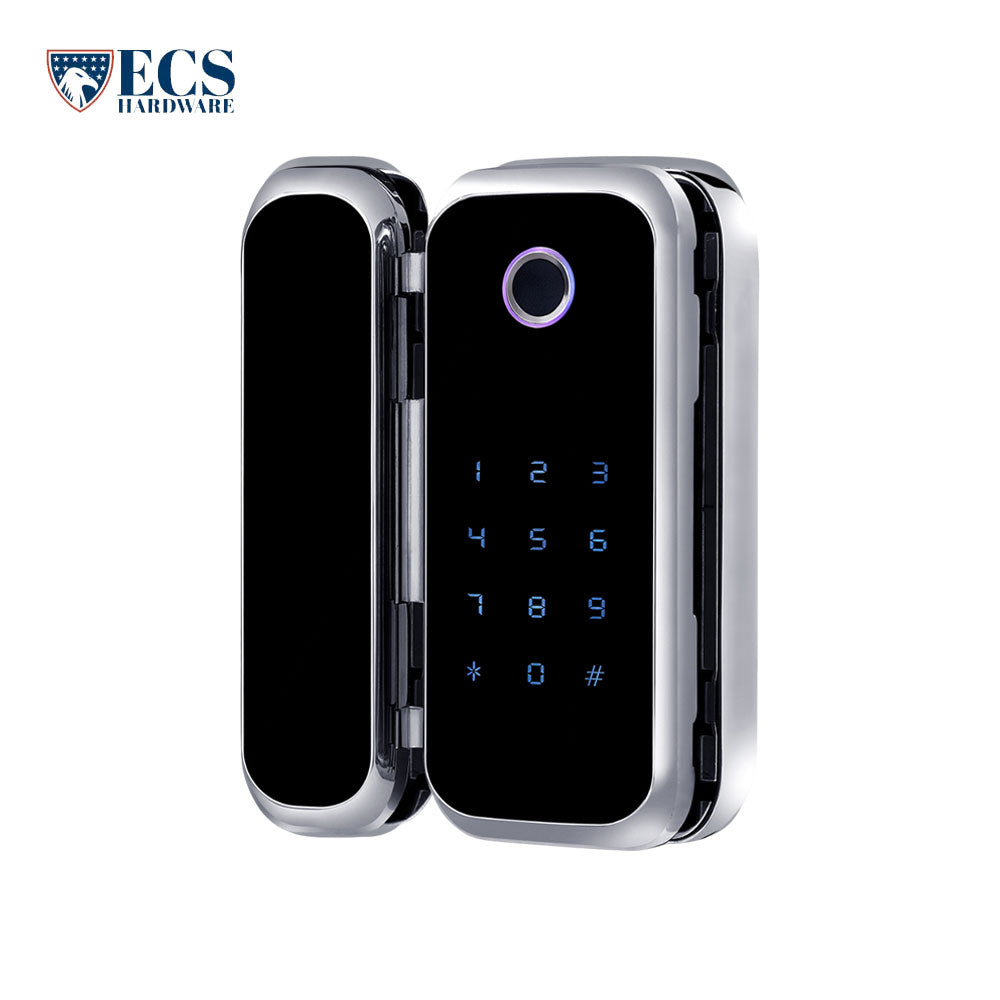

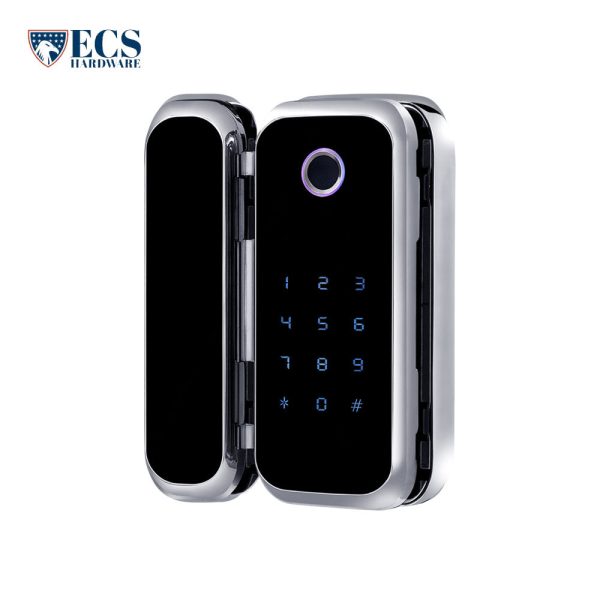

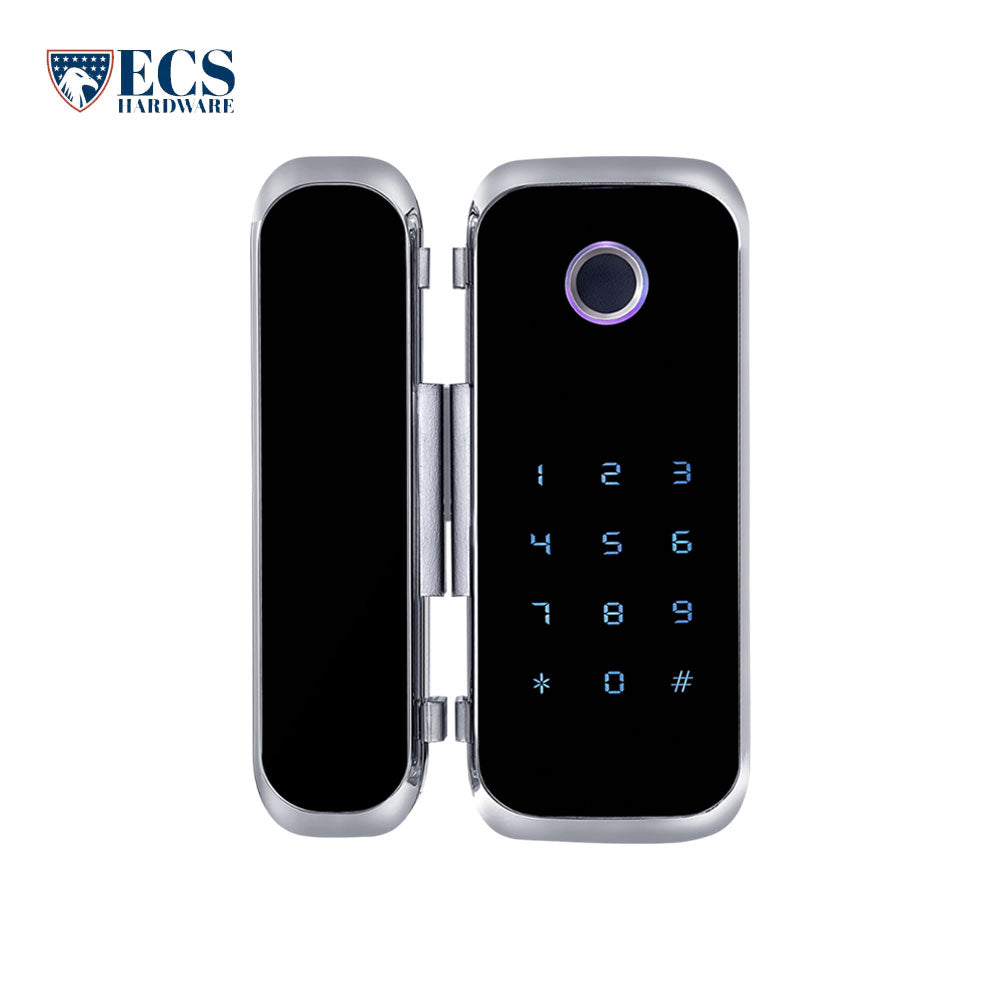

ECS HARDWARE – M901S-W – Smart Glass Door Lock with WiFi, Fingerprint, Pin Code & Card Access – Ideal for Swinging Doors (Gateway Separate)

ALL NEW WiFi Glass Only No Drilling Needed Lock. WiFi Access Via IOS or ANDROID APP on your Smartphone, Fingerprint, Pin Code, RF Card Unlocking For Swinging doors Up to 300 Different Users Door Thickness 1 2 inch Zinc Alloy and ABS material Automatically Relocks Semiconductor Fingerprint Sensor Touch Screen Keypad LCD Display Indicator Door Bell Unlock Records Tracking Voice Indicator.

Features:

• 4 ways to unlock: WiFi APP, Fingerprint, Card , PIN Code
• Convenient APP management system
• Remotely send temporary PW to cell phone through APP.
• One-time PW Time-period (weekly recycle).
• Time-limited or permanent password settings, suitable for various scenarios.
• Remotely authorize user to open door.
• Local storage of lock record.
• Real-time check of lock record.
• Simple installation without punching.
• Emergency power supply in case of power runs out.

• Specifications:

  Model		M901SW
  Material		Zinc Alloy, ABS
  Finish		SS
  Mortise		Integrated
  Applicated Door Thickness		10~12mm Glass Door
  Power		6V (Alkaline AA battery x 4)
  Battery Life Time		3,000~4,000 times
  Emergency Power Port		Micro-USB
  Operating Temperature		-15°C~55°C
  Fingerprint Sensor		Semiconductor Sensor
  Password		6-10 Digits
  Card		S50 (13.56MHz)
  Bluetooth Wi-Fi		BLE 4.0 (TTLock)
  Mechanical Key		Not Available
  User Capacity		300 (FP PW CARD)
  Outside Plate Dimension		72.5x165x13 mm
  Inside Plate Dimension		72.5x165x32 mm

  Downloads:

  • User Manual

  • Video:

    Additional information

  Handed	Left, Right
