Description

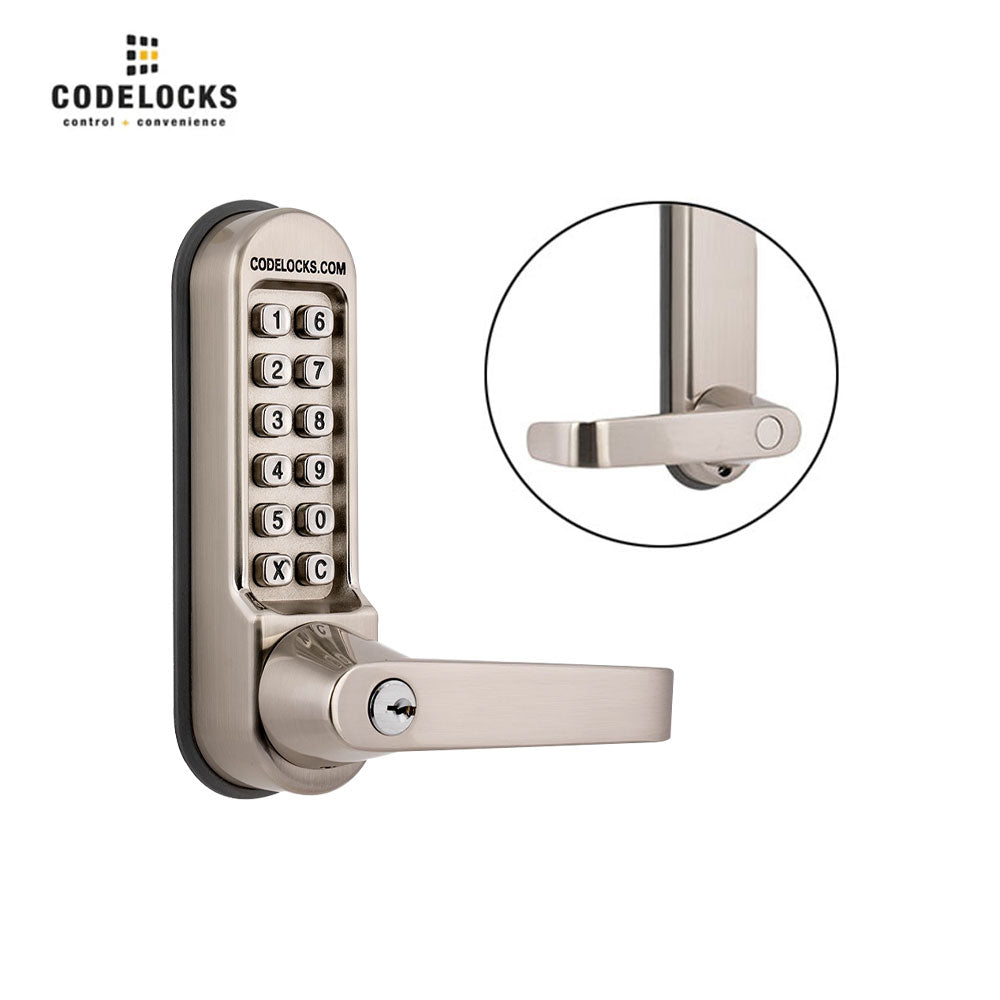

Codelocks CL550 Heavy Duty Mortise Lock with Key Override, Stainless Steel

A heavy duty mechanical ANSI mortise lock with key override. The outside lever handle will retract the latch after a correct code is entered.

The CL550KEY with the PMLCAUT feature contains a latchbolt and spring-loaded deadbolt that will both automatically lock when the door is closed. When a correct code is entered and the lever suppresses, the latchbolt and deadbolt retracts simultaneously, allowing for single-action egress.

Features:

• Key Override – two keys supplied
• Locks can be supplied Keyed Alike
• Full size redesigned lever handles with return to door
• Suitable for wooden doors between 1-3 8 and 2-3 8 thick.
• Large three coil lever return spring suitable for high traffic use
• Limited lifetime manufacturer guarantee
• 2,047 non-sequential code combinations
• Suitable for internal and external use
• Compatible with XT2 Weather Cover

• Specifications:

  Brand		Codelocks
  Buttons		2 x 6
  Codes Change Method		Tumblers (Off Door)
  Door Thickness		35mm – 60mm
  Handed		Non Handed – Locks will fit doors hung on the left or right
  Keypad		12 stainless steel buttons
  Latch Type		Mortice Lock (Sash)
  Lock Dimensions		177mm, 48mm
  Lock Material		Zinc Alloy
  Orientation		Vertical
  Spindle		Two part 8mm spring loaded spindle
  Suitable For		Internal, External
  User Types		Code

  Download:

  • Installation Instruction
  • Code Instruction
