Description

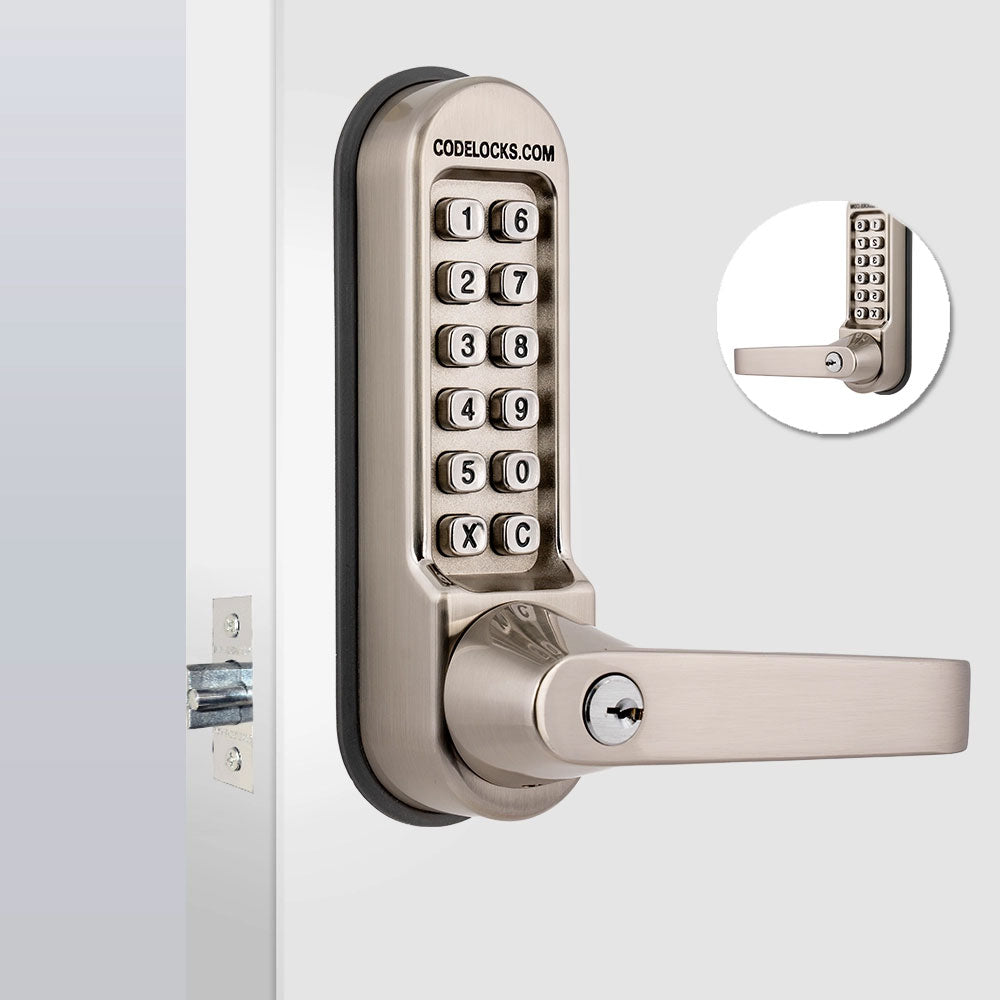

Codelocks CL515 Heavy Duty Tubular Mortise Lock Back to Back with Key Override and Code Free

Heavy duty mechanical lock with tubular latch and two coded plates providing coded access in both directions and redesigned lever handle. With key override and code free option

The CL500KEY brings a powerful update to our trusted CL500 Mechanical Range. The redesigned lever handle assembly offers enhanced durability for high traffic applications, along with the functionality of Key Override. This solution bridges the gap between the trusted CL500 range and the heavyweight CL600 range, combining robust everyday dependability the CL500 is well known for, and better management versatility with the addition of the key.

Features:

• Key Override – two keys supplied
• Locks can be supplied Keyed Alike
• Full size redesigned lever handles with return to door
• Code Free access option
• Suitable for wooden doors between 1-3 8 and 2-3 8 thick.
• Large three coil lever return spring suitable for high traffic use
• Limited lifetime manufacturer guarantee
• 2,047 non-sequential code combinations
• Suitable for internal and external use
• Compatible with XT2 Weather Cover

• Specifications:

  Brand		Codelocks
  Buttons		2 x 6
  Codes		Single Code – 2,047 non sequential code combinations available
  Door Thickness		60mm,70mm
  Handed		Non Handed – Locks will fit doors hung on the left or right
  Keypad		12 stainless steel buttons
  Latch Type		60mm Mortise Latch, 70mm Mortise Latch
  Lock Dimensions		177mm, 48mm
  Lock Material		Zinc Alloy
  Orientation		Vertical
  Spindle		Two part 8mm spring loaded spindle
  Suitable For		Internal, External
  User Types		Code

  Download:

  • Installation Instruction
  • Code Instruction

  • Additional information

  Color	Marine Grade Black, Stainless Steel
  Latch Backset	2 3/4 Inch (70mm), 2 3/8 Inch (60mm)
