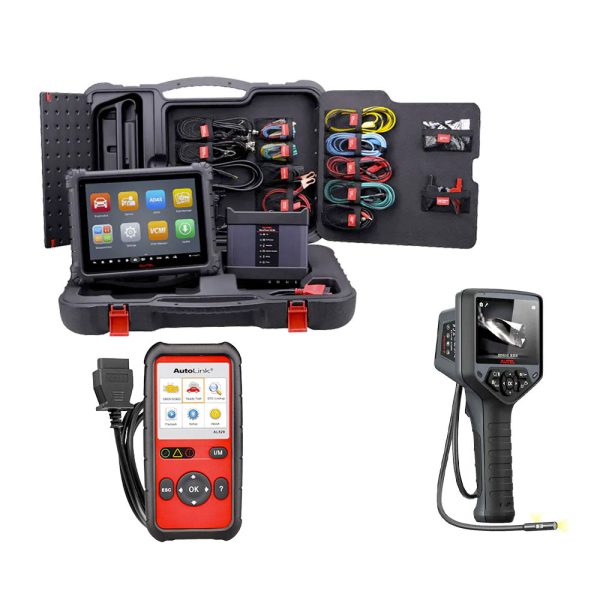

The MaxiSys Ultra is Autel’s most ambitious diagnostics tablet designed to maximize technician intelligence. It features a 12.9-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features and Intelligent Diagnostics options, the Ultra offers the technicians step-by-step repair guidance. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.

Features:

• Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
• Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
• Automatic system and software updates with real-time push message notifications via internet
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

• Specifications:

  Operating System		Android 7.0
  Processor		Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
  Memory		4GB RAM & 256GB On-board Memory
  Display		12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
  Connectivity		WiFix2 (802.11 a b g n ac 2×2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (Two USB HOST Type A, one USB mini device) HDMI 2.0 SD Card (Support up to 256GB)
  Camera		Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
  Sensors		Gravity Accelerometer, Ambient Light Sensor (ALS)
  Audio Input Output		Microphone Dual Speakers 3-Band 3.5 mm stereo standard headset jack
  Power and Battery		18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC DC power supply with the temperature between 0°C and 45°C
  Input Voltage		12V 3A Adapter
  Operating Temp.		0 to 50°C (32 to 122°F)
  Storage Temperature		-20 to 60°C (-4 to 140°F)
  Dimensions (WxHxD)		366.5 mm (14.43 ) x 280.9 mm (11.06 ) x 34 mm (1.34 )
  Weight		2.18kg (4.81 lb.)
  Protocols		DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

  Download:

  • Maxisys Ultra User Manual
  • MaxiSYS Ultra Sales Flyer

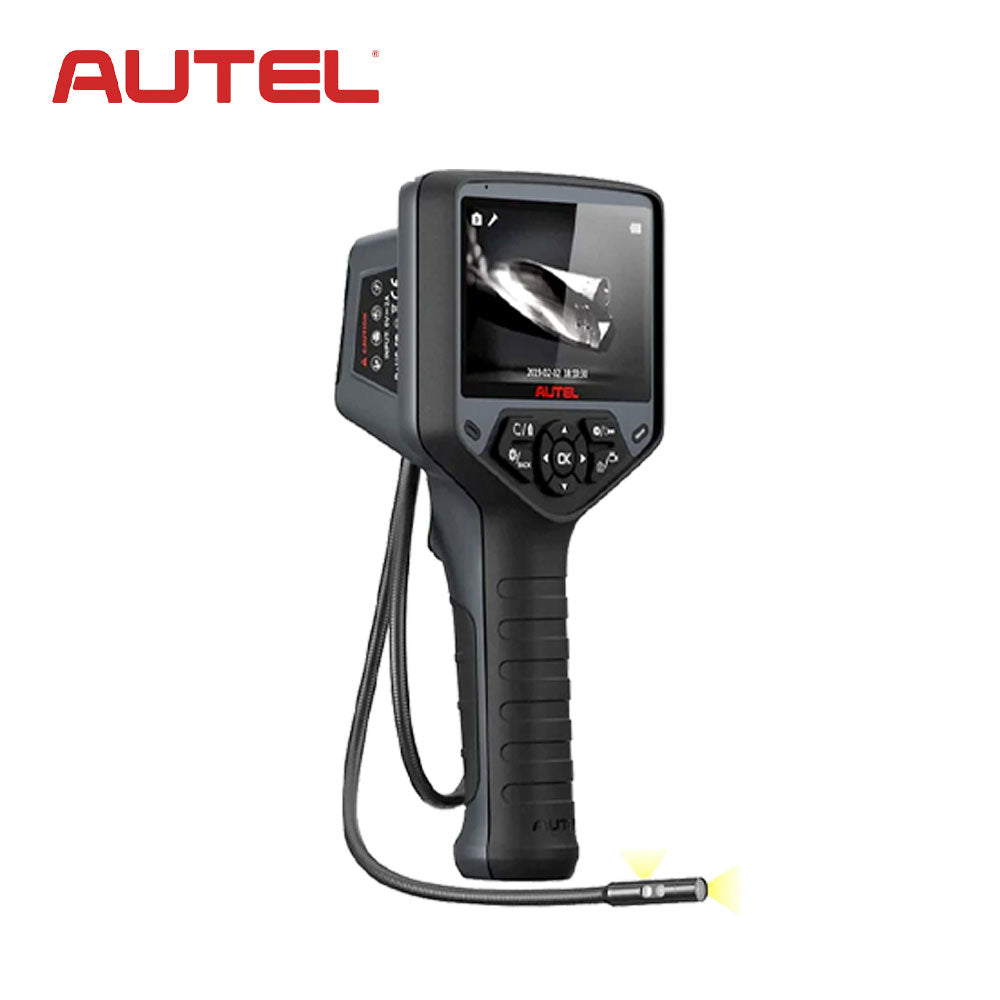

  • Autel MaxiVideo Dual-Camera Digital Videoscope Inspection Camera Endoscope MV480

    The MaxiVideo MV480, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features dual front and side cameras with 1920×1080 high resolution, a 4.1 1200×720 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.

    Features:

    • High resolution images and videos (1920 x 1080)
    • Dual front and side cameras for wider viewing angle
    • 4.1-inch full color LCD display (1200 x 720)
    • 1-button quick image capture and video recording
    • 70-degree field of view for expanded viewing angle
    • Adds audio annotation for detailed review
    • Micro HDMI-output enables streaming to larger monitors
    • Freeze-frame camera stills or video recording
    • On-screen horizontal vertical reverse
    • Records and plays back images and video clips
    • 7X digital zoom for increased viewing
    • 8GB Micro SD card (included), supports up to 128GB
    • Mini-USB cable (included) for uploading images and videos
    • More than 10,000 lux, adjustable 10-level LED illumination
    • Flashlight for higher visibility in low-light environment
    • Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use
    • 1m (39.4 ) semi-rigid, flexible watertight cable
    • Includes magnet and hook cable accessories
    • 8.5mm (0.33’’) probe fits most spark plug holes
    • Compatible with 5.5mm (0.22’’) camera head (not included)

    • Specifications:

      • Recommended use: Indoor
      • Optimal viewing Distance: 0.79 to 2 (2 cm to 5 cm)
      • Image capture: JPG images (1920 x 1080 pixels)
      • MP4: videos (1920 x 1080 pixels)
      • Screen type: display 4.1 TFT LCD
      • Display resolution: 1200 x 720 pixels
      • Power supply Built-in rechargeable lithium-ion battery pack (3.7V 2600 mAh)
      • Tested battery life: Approximately 4 hours of continuous use
      • Dimensions: 243 x 116 x 122mm (9.6 x 4.6 x 4.8 )
      • Weight : 0.422 kg (0.93lbs)
      • Recording medium: Micro SD card (8GB Standard 128GB Max)
      • Image controls: Zoom, low light vision
      • Lighting: Fully adjustable LED, Flashlight
      • Cable reach: 1m (39.4 )
      • Imager heads: 8.5mm (0.33 ), 2 megapixel (1920 x 1080 pixels)
      • Waterproof: To a depth of 1m (39.4 ) (Imager heads and cable only)
      • Additional ports: TF, Mini USB, Micro HDMI
      • Operating temp: Main unit: 14°F to 122°F (-10°C to 50°C)
      • Cable: 14°F to 140°F (-10°C to 60°C)
      • Storage temp: -4°F to 158°F (-20°C to 70°C)
      • Operating humidity 5% 95% non-condensing

      • Autel AutoLink AL529 OBD2 Code Scanner and Emission Tester

        The AutoLink AL529 OBDII Code Reader supports all 10 modes of OBDII test for complete vehicle diagnostics. The easy-to-use tool features a TFT color display and built-in speaker for visual and audible message cues and the patented One-Click I M Readiness Key for quick State Emissions.

        Features:

        • AutoVIN function for quickly identifying manufacturer-specific codes
        • Reads enhanced codes in Powertrain system for Ford, GM and Chrysler
        • Compatible with domestic, Asian and European vehicles, 1996 and newer
        • Retrieves generic (P0, P2, P3 and U0), manufacturer-specific (P1, P3 and U1) and pending codes
        • Enhanced OBD II Mode 6
        • Retrieves vehicle identification information (VIN, CALID and CVN)
        • Turns off Check Engine Light, clears codes and resets monitors
        • Views freeze frame data
        • Displays monitor and I M readiness (emissions) status
        • Reads live PCM data stream
        • Displays live O2 sensor test data
        • Graphs data
        • Reads, stores and plays back live sensor data
        • Troubleshooter code tips aid technician in efficient vehicle diagnostics and vehicle repair
        • Patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification
        • Bright color-coded LEDs and built-in speaker provide both visual and audible tone for readiness verification
        • Multilingual (including English, Spanish and French) menu and DTC definitions
        • Internet Updatable
        • Prints data via Windows PC

        • Specifications:

  Display		2.8-inch LCD (320×240 dpi)
  Connectivity		USB mini 2.0 OBD II DB15
  Operating Temp		0℃ to 60 ℃ (32℉ to 140℉)
  Storage Temp		-20℃ to 70 ℃ (-1℉ to 158℉)
  External Power		8.0 to 18.0V power provided via vehicle battery
  Dimensions (LxWxH)		183 mm (7.2”) x 91 mm (3.58”) x 33 mm (1.3”)
  Weight		237 g (0.522 lb.)

  Download:

  • AL529&529HD Quick Guide V1.00(2)
  • AutoLink AL529 User Manual
