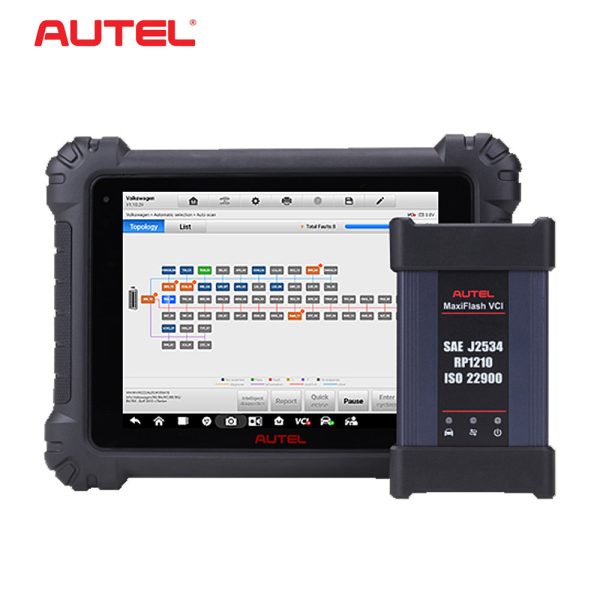

The MaxiSYS MS909 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.2GHz Quad + 1.8GHz Quad), 128GB memory and features an advanced VCI supporting latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The MS909 features topology module mapping capability for supported vehicles and its Intelligent Diagnostics feature that guides the technician from code to repair to test with detailed repair information and illustrations. The MS909 features a rechargeable Lithium battery providing 8 hours of continuous use, and front and rear cameras.

Features:

• Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
• Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
• Dynamic Module Topology Interface: Color Coded All System Status Screen (for supported vehicles)
• Remote Expert-ready: contract with expert programmers and diagnosticians with OE tools and subscriptions for module programming, ADAS calibration, and gateway access.
• ADAS Calibration Software Capable (purchase required)
• Includes MaxiFlash VCI with J2534, RP1210, ISO 22900, D-PDU, DoIP CAN FD & Mega CAN Protocols
• Includes Connector Kit, Carry Case & 1YR Warranty Software Subscription

• Specifications:

  Operating System		Android 10.0
  Processor		Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73+ 1.8GHz Quad-core A53)
  Memory		4GB RAM & 128GB On-board Memory
  Display		9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
  Connectivity		Dual Wi-Fi (802.11 a b g n ac 2×2 MIMO) BT V5.0 + BR EDR GPS USB 2.0 (2 USB TYPE-A ports and a Mini USB port) HDMI 2.0 SD Card (Support up to 256GB)
  Camera		Rear: 16 Megapixel, Autofocus with Flashlight Front: 16 Megapixel
  Sensors		Gravity Accelerometer, Ambient Light Sensor (ALS)
  Audio Input Output		Microphone Dual Speakers 3-Band 3.5 mm stereo standard headset jac
  Power and Battery		15000mAH 3.8V lithium-polymer battery Charging via 12V AC DC power supply with the temperature between 0°C and 45°C
  Input Voltage		12V 1.3A Adapter
  Operating Temperature		<0 to 50°C (32 to 122°F)
  Storage Temperature		-20 to 60°C (-4 to 140°F)
  Dimensions(W x H x D)		304.4 mm (11.98 ) x 227.8 mm (8.97 ) x 42.5 mm (1.67 )
  Weight		1.66kg (3.66 lb.)
  Protocols		DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

  Downloads:

  • MaxiSys MS909 User Manual
  • MS909 Quick Guide

  • AUTEL MaxiSystem NON-OBDII- Adapter Kit

    The MSOBD2KIT, compatible with the MSUltra, MS919 and MS909, includes OEcompliant adapters for specific vehicles produced between 1996 and 2002 without the standard OBD2 pin configuration. Connectors Include Nissan14, Mitsubishi Hyundai 12+16, Kia20, BMW20, Benz38, VW Audi2+2, Mazda17, Chrysler16 and Benz14, within a blow-molded carrying case.

    Features:

    • Compatibility Expound: Autel MaxiSys MSOBD2KIT is compatibility with Autel MS Ultra MS919 MS909 Elite II TS608 MP808 MP808TS MK808BT MK808TS MX808 MK808, etc. Owing with MaxiSys MSOBD2KIT Non-OBDII Adapters, specific stable connecting will be easily for diagnose vehicle.

    • Cover More Vehicles: With 9pcs connectors, you are allowed to connect vehicles between 1996 and 2002 without the standard OBD2 pin configuration. With MSOBD2KIT OE-Compliant Connectors and corresponding diagnostic scanner, all kinds of commercial vehicles and passenger cars can be freely connected.

    • Extensive Use: If your Autel scanner comes with connectors but missed, if want to connect with cars with non-standard connector, if need get more stable connection way than wireless, MaxiSys MSOBD2KIT Non-OBDII Adapters Kit will be your perfect automotive scanner accessory. Non-OBD2 adapters works surprisingly fast, connects in seconds and has excellent range.

    • Packing List:

      • Nissan-14 Adapter
      • Mitsubishi Hyundai 12+16 Adapter
      • Kia-20 Adapter
      • BMW-20 Adapter
      • Benz-38 Adapter
      • VW Audi-2+2 Adapter
      • Mazda-17 Adapter
      • Chrysler-16 Adapter
      • Benz-14 Adapter
      • Carrying Case

      • Download:

        • MSOBD2KIT Flyer
        • MSOBD2KIT Packing List
