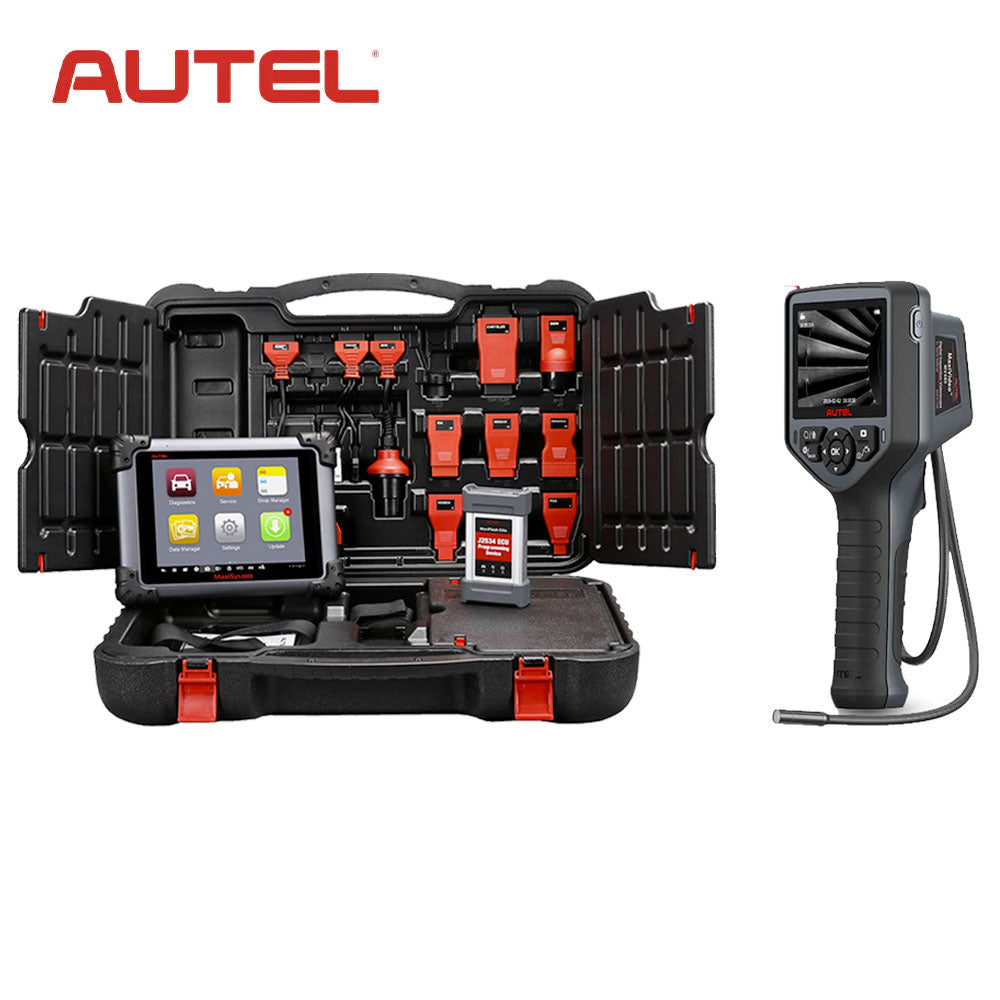

One of the MaxiSys series devices, the MS908S Pro Diagnostic Platform bases on the revolutionary Android multitasking operating system, utilizes the powerful Cortex A7+A15 six-core processor, and equips with 9.7-inch LED capacitive touch screen. Supporting J2534 ECU Programming Device is capable of replacing the existing software firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues. MS908S Pro is an ideal tool for a truly trouble-free diagnosis of a maintenance plant by quickly, efficiently and effectively diagnosing automotive faults, managing customer data, and standardizing business processes.

Features:

• Extraordinarily powerful Cortex A7+A15 six-core processor
• 9.7” 2048×1536 LED-backlit glossy Multi-Touch capacitive display with IPS technology
• Internal reliable 64GB On-board Memory for better performance
• Built-in 8-megapixel rear camera with autofocus and flashlight
• The VCI connects to the main unit wirelessly with up to 70 meters working range
• 802.11 a b g n ac Wi-Fi to access your favorite web resources
• Unique ergonomic design with rubberized outer protection and a rugged internal housing
• Open source Android Operating System for fast boot-up and multitasking
• Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
• Exceptional OE-Level system coverage for all electronic systems
• Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
• Built-in rechargeable lithium-polymer battery for up to 7.5 hours of continuous operation
• Equip with J2534 ECU Programming Device for replacing the existing software firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues

• Specification:

  Operating System		Android™ 4.4.2, KitKat
  Processor		Samsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
  Memory		2GB RAM & 64GB On-board Memory
  Display		9.7 inch LED capacitive touch screen with 2048×1536 resolution
  Connectivity		Wi-Fi (802.11 a b g n ac) USB: 2.0 BT v.2.1 + EDR SD Card (Support up to 32GB) HDMI
  Camera (rear)		8.0 Megapixel, AF with Flashlight
  Sensors		Gravity Accelerometer, Ambient Light Sensor (ALS)
  Audio Input Output		Microphone Dual Speakers 3-Band 3.5 mm stereo standard headset jack
  Power and Battery		11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC DC power supply with the temperature between 0°C and 45°C
  Input Voltage		12 V (9-24 V)
  Power Consumption		6.5 W
  Operating Temp		0 to 50°C (32 to 122°F)
  Storage Temp		-20 to 60°C (-4 to 140°F)
  Dimensions(WXHX D)		300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
  Weight		NW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.)
  Protocols		ISO 9142-2, ISO 14230-2, ISO 15765-4, K L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

  MaxiSYS Comparison:



  Download:

  • User Manual
  • Specifications
  • Accesories

  • Autel MaxiVideo MV460 Next Generation of Digital Videoscope

    The MaxiVideo MV460, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features a 1920 x 1080 high resolution camera, a 3.5-inch 640 x 480 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours of continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.

    Features:

    • High resolution images and videos (1920 x 1080)
    • 3.5-inch full color LCD display (640 x 480)
    • 1-button quick image capture and video recording
    • 70-degree field of view for expanded viewing angle
    • Micro HDMI-output enables streaming to larger monitors
    • Freeze-frame camera stills or video recording
    • On-screen horizontal vertical reverse
    • Records and plays back images and video clips
    • 7X digital zoom for increased viewing
    • 8GB Micro SD card (included), supports up to 128GB
    • Mini-USB cable (included) for uploading images and videos
    • More than 10,000 lux, adjustable 10-level LED illumination
    • Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use
    • 1m (39.4 ) semi-rigid, flexible watertight cable
    • Includes magnet, hook, and mirror cable accessories
    • 8.5mm (0.33’’) probe fits most spark plug holes
    • Compatible with 5.5mm (0.22’’) camera head (not included)

    • Specifications:

  Recommended Use		Indoor
  Optimal Viewing Distance		0.79 to 2 (2 cm to 5 cm)
  Image Capture		JPG images (1920 x 1080 pixels) MP4 videos (1920 x 1080 pixels)
  Display		3.5 TFT LCD
  Display Resolution		640 x 480 pixels
  Power Supply		Built-in rechargeable lithium-ion battery pack (3.7V 2600 mAh)
  Tested Battery Life		Approximately 4 hours of continuous use
  Dimensions		235 x 97 x 125mm (9.3 x 3.8 x 4.9 )
  Weight		0.393kg (0.87lbs)
  Recording Medium		Micro SD card (8GB Standard 128GB Max)
  Image Controls		Zoom, low light vision
  Lighting		Fully adjustable LED
  Cable Reach		1m (39.4 )
  Imager Head		8.5mm (0.33 ), 2 megapixel (1920 x 1080 pixels)
  Waterproof		To a depth of 1m (39.4 ) (Imager heads and cable only)
  Additional Ports		TF, Mini USB, Micro HDMI
  Operating Temp		Main unit: 14°F to 122°F (-10°C to 50°C); Cable: 14°F to 140°F (-10°C to 60°C)
  Storage Temp		-4°F to 158°F (-20°C to 70°C)
  Operating Humidity		5% – 95% non-condensing

  Comparison:



  Downloads:

  • User Manual
  • MV460_Update_V1.07
  • FirmwareUpdate_MV460_V1.18
  • Flyer

  • Video:
