Description

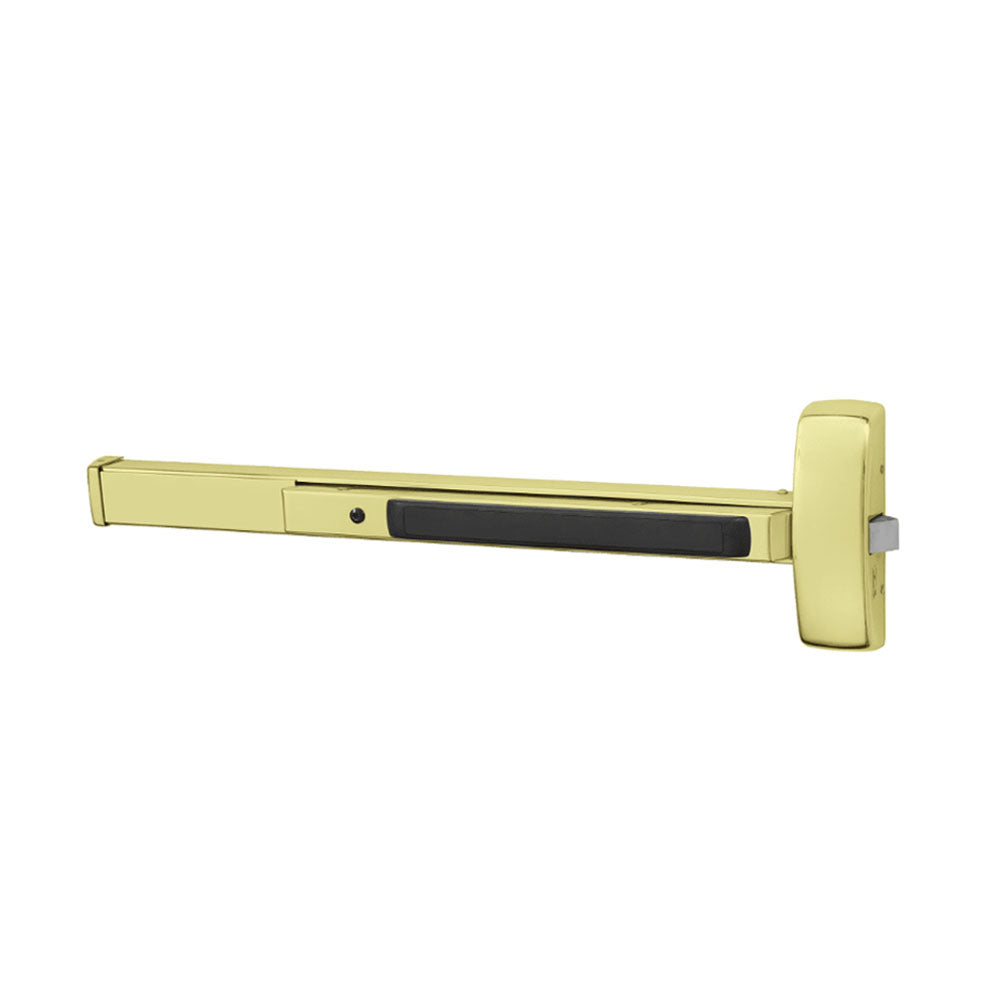

Sargent – 8810 – Rim Exit Bar with Wide Stile Pushpad Exit Only and Hex Key Dogging – Field Reversible – Grade 1

The 8800 series is designed for standard width stile applications on wood and metal doors. This Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent s full line of exit devices.

Features:

• Single point rim latching device
• Single door and double door applications with mullions
• Quiet operation and solid security
• Devices are ANSI A156.3 – Grade 1
• UL Fire and Panic listed

• Product Specifications:

  Manufacturer		Sargent
  Model		8810
  Grade		Grade 1
  Installation		Commercial
  UL Listing Type		UL10C and UL305
  ANSI Number		ANSI BHMA A156.3
  BAA Qualified		Yes
  Manufacturer Warranty		5 Years

  Technical Specifications:

  Physical Appearance		Wide Stile Pushpad
  Device Type		Rim
  Mechanical Function		Exit Only
  Handing		Non-Handed
  Dogging Options		Hex Key Dogging
  Includes Trim		No
  Trim Type		Less trim
  Includes Cylinder(s)		No
  Cylinder Type		Non-Keyed
  Minimum Stile Size		4 3 4
  Door Material		Metal or Wood
  Door Width		24 to 32
  Door Thickness		1 3 4 – 2 1 4
  Fire Rated		No
  Reversible		Yes
  Product Type		Rim Exit Devices

  Additional information

  Color	US10BE (Dark Oxidized Satin Bronze), US3 – Bright Polished Brass (605), US32D – Satin Stainless Steel (630)
  Size	32 Inch, 36 Inch, 42 Inch, 48 Inch
