Description

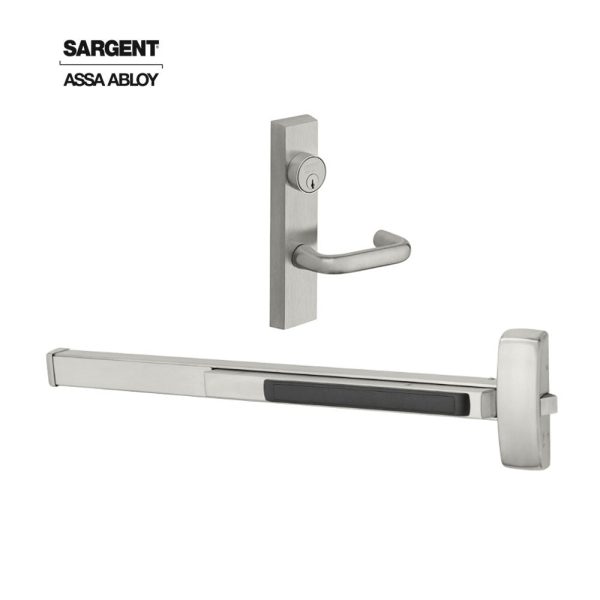

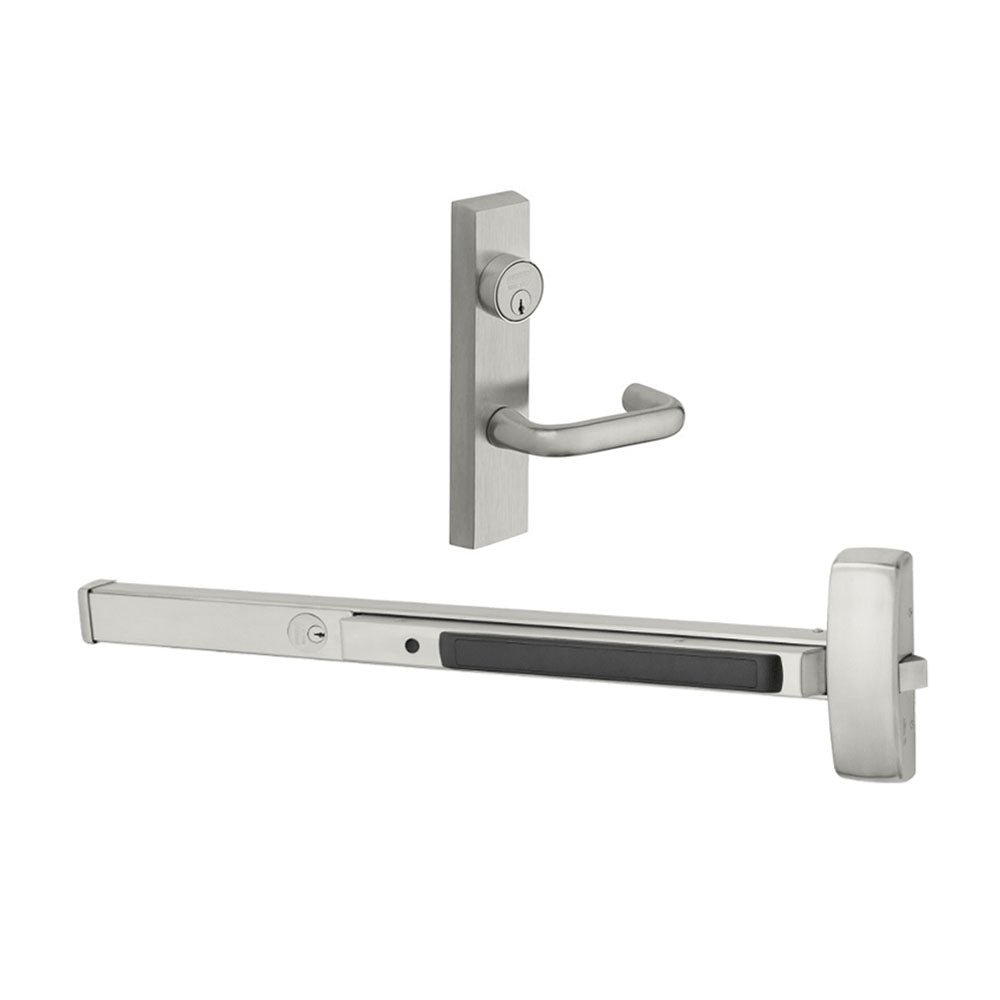

Sargent – 8806F – Rim Exit Devices with Trim – Wide Stile Pushpad – Storeroom Function – Schlage-C Keyway Cylinder – Escutcheon Trim – 36 – Grade 1 – US32D (Satin Stainless Steel)

The 8800 series is designed for standard width stile applications on wood and metal doors. The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent s full line of exit devices.

Features:

• Single point rim latching device
• Single door and double door applications with mullions
• Quiet operation and solid security
• Devices are ANSI A156.3 – Grade 1
• UL Fire and Panic listed

• Product Specifications:

  Manufacturer		Sargent
  Grade		Grade 1
  ADA Compliance		Yes
  BAA Qualified		Yes
  Fire Rating		3 Hours {A} (Only for Mechanical Option 12)
  ANSI		ANSI BHMA A156.3
  UL Listing		UL10C and UL305

  Technical Specifications:

  Function		Storeroom Function
  Cylinder Type		Schlage-C Keyway Cylinder
  Physical Appearance		Wide Stile Pushpad
  Door Thickness		1-3 4 – 2-1 4
  Door Material		Metal or Wood
  Includes Trim		Yes
  Trim Type		Lever
  Trim Design		Lever with Escutcheon
  Minimum Stile Size		4-3 4
  Door Width		33 to 36

  Additional information

  Handed	Left Hand Reverse, Right Hand Reverse
  Lever	J, L
  Mechanical Options	12 (Fire Rated), 16 (Cylinder Dogging), 43 (Flush End Cap), 53 (Latchbolt Monitoring), 55 (Request-to-Exit), 56 (Electric Latch Retraction-ELR), HC (Hurricane Code)
