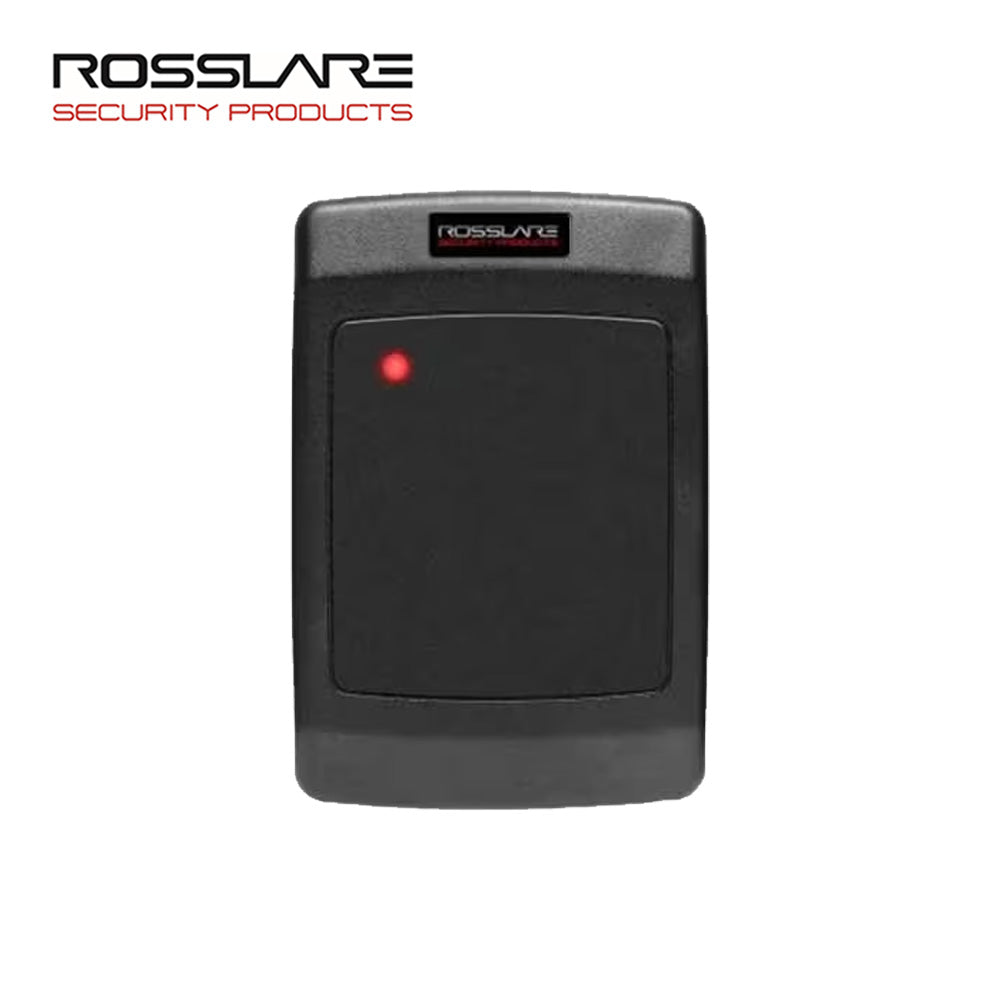

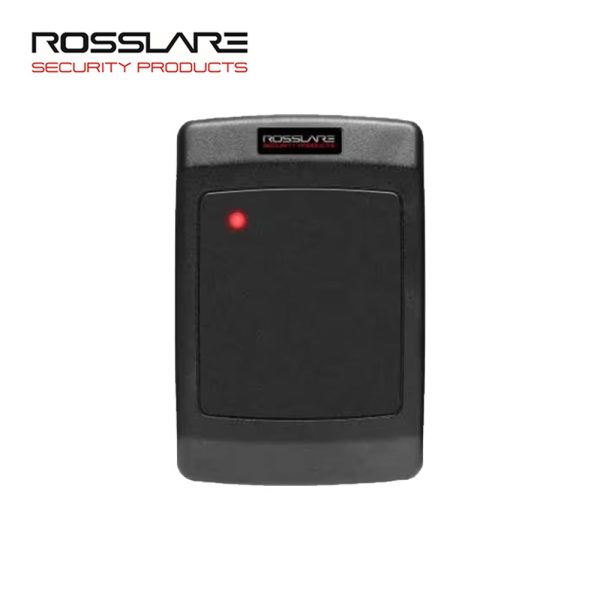

Rosslare – AY-H25B – MIFARE Classic Contactless Smart Card Reader

Rosslare s AY-H25B is a reliable reader capable of reading MIFARE Classic EV1 smart card Contactless cards utilizing any standard access control system. With 7 selectable output formats, it is suited to most existing systems by reading only the required information from the card. The AY-H25B reader is fully potted, sealed, and made of rigid, UV resistant poly-carbonate housing, which make them highly suitable for outdoor use. This reader is a very simple, reliable, and cost-effective way to upgrade your system to the smart card standard. The AY-H25B series of readers are compatible with a variety of Rosslare s controllers as well as with many third party systems.

Features:

• Incorporates the ISO-14443A MIFARE Classic EV1 ID Format Protocol.
• Read range between of 6 to 7 cm (2.4 to 2.8 in.).
• Programmable output formats including standard Wiegand 26-Bit.
• Selectable LED control and buzzer control functions.
• Made of tough Polycarbonate plastic for improved performance in all weather conditions.
• Optical back tamper detection.
• Internal buzzer.
• PC software and programming adapter (MD-08B) for easy configuration.
• Weather Resistant.

• Specifications:

  Operating Voltage Range		5-16 VDC, from a regulated power supply
  Standby Max Input Current		35 mA 55 mA
  Tamper Output		Open collector, active low, max. sink current 16 mA
  Inputs		Programmable LED and buzzer control inputs, N.O, Dry Contact
  Indicators		Tri-colored LED indicators
  Output Format		Selectable transmission formats: Wiegand 26-Bit w site code, Fixed 26-bit, 32-Bit, 32-Bit reversed, 34-Bit, 40-Bit and Clock & Data
  Proximity Card Reader		MIFARE Classic EV1 Compatible ISO-14443A Range also depends on electrical environment and proximity to metal.
  Max. Read Range		70 mm (2.8 in.)
  Design		Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Suitable for harsh environments.
  Dimensions		4.3 x 3.0 x 0.6 in.
  Weight		116.9 g (4.1 oz)
  Device Certifications		IP65
