Description

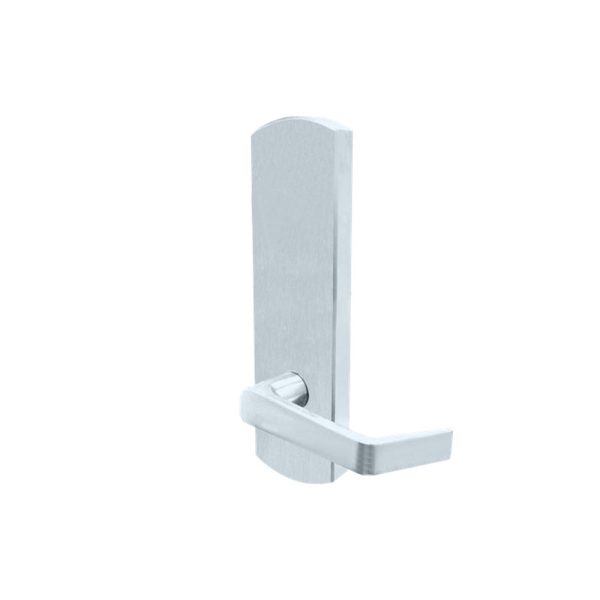

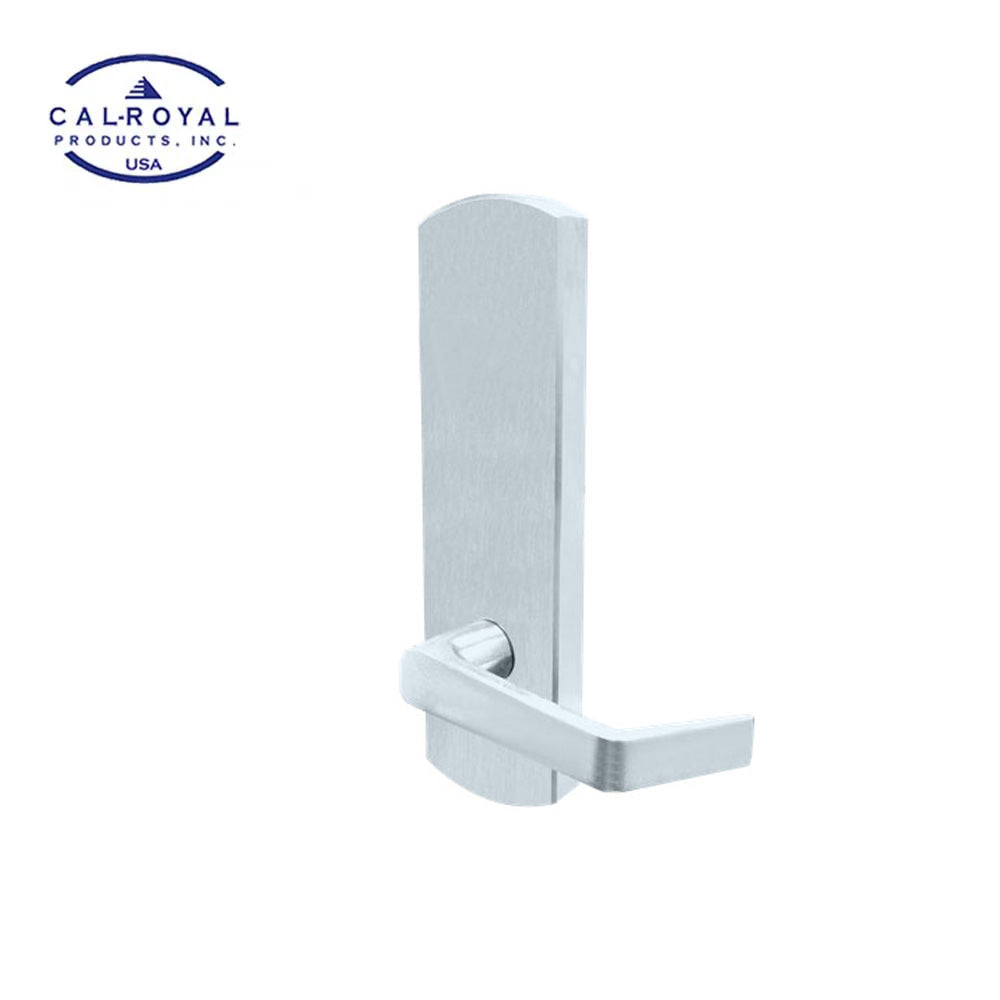

Cal-Royal – ESC7740 – Privacy Rigid Escutcheon Exit Device Lever Trim with 2-3 4 Backset – Grade 1 – US26D – Satin Chromium Plated (626)

Features:

• Rigid, non-clutch mechanism.
• Double heavy duty spring support to prevent sagging and enhance operation.
• Grade 1, thru-bolted design. Non-handed design. Easily field reversible.
• Hardened steel heavy duty tailpiece. Available for fire and non-fire rated rim and vertical rod exit devices.

• Specifications:

  Application		Escutcheon Lever Exit Trim Application For 7700 Series exit devices
  Function		Privacy – Latch bolt by knobs, deadbolt by turn inside or emergency key outside. (ANSI 02)
  Handing		Non-Handed
  Door Thickness		1-3 4 to 2-1 4
  Trim		Escutcheon Lever Exit Trim
  Escutcheon		Forged brass, 2-5 16 x 8-1 2
  Backset		2-3 4 standard
  Lever		4-3 4 long
  Finish		US26D – Satin Chromium Plated (626)
  Certifications		ANSI Grade 1 Certified, UL – UL 10C UL Listed 10C, ADA
