Description

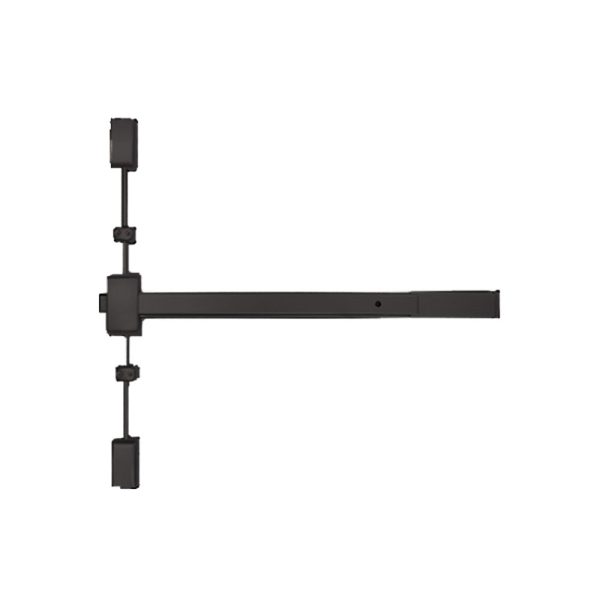

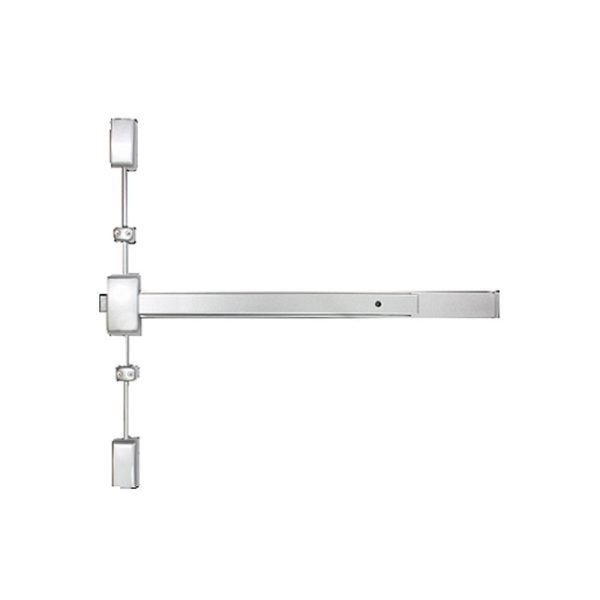

Cal-Royal A2280V4896 AF2280V4896 Surface Vertical Rod Exit Device – Grade 1

Feature:

• Americans with Disability Act (ADA) compliant. 5 lbs opening force on ADA product only
• ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs
• UL Listed for Panic and UL10C, UBC 7-2-1997 codes
• UL Listed for Fire Exit Hardware. 3 Hours
• Conforms and Meets ADA Regulations (ADA products only)
• (A) label rating in pairs of doors up to 8 0 x 8 0 swinging in same or opposite directions
• Uncompromising security and safety in single and double fire exit doors
• Chassis mounted unit construction
• Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch-on rose trims. Escutcheon trims are rigid and covers
  161 cut out.

• Specifications:

  For Doors		1 3 4 thick standard optional 2 1 4 thick. 3 3 4 minimum stile width required for single door application. 3 1 2 minimum stile width required for double door application. Lever trims available. 2 3 4 backset
  Top and Bottom Chassis		Non-ferrous Alloy (Panic Grade), Steel (Fire Grade)
  Cover		Non-ferrous plated material. Covers stock hollow metal doors with 161 cut out
  Mounting		Furnished standard with wood and machine screws. Thru-bolts are standard packaging on fi re rated devices
  End Cap		Steel construction
  Hand		Handed. Easily fi eld reversible. Specify at time of order LHR, RHR for convenience
  Latch Bolt and Spring		Stainless steel
  ANSI Standard		A156.3, Grade 1
  Dogging Feature		Allen-type key furnished standard on non-fi re labeled devices
  UL and ULC Listed		A2280V – Non-Fire Rated AF2280V – Fire Rated
  Finish		Available in Alum, Duro, Gold, L1 (Black)

  Additional information

  Color	Aluminum Painted (689), Duronotic, Flat Black-L1, Gold
  Fire Rating	Fire Rated, Non-Fire Rated
  Handing	Left Hand Reverse, Right Hand Reverse
